Cooler Master TD500L ATX CPU Casing
AESTHETIC DIAMOND CUT DESIGN

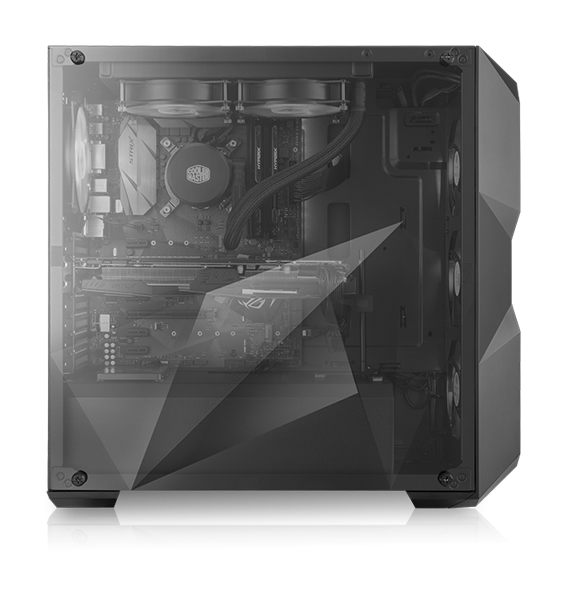

EDGE TO EDGE ACRYLIC SIDE PANEL
Show off your build through the unique shaped edge to edge acrylic side panel and enjoy the special lighting effect from different viewing angles.

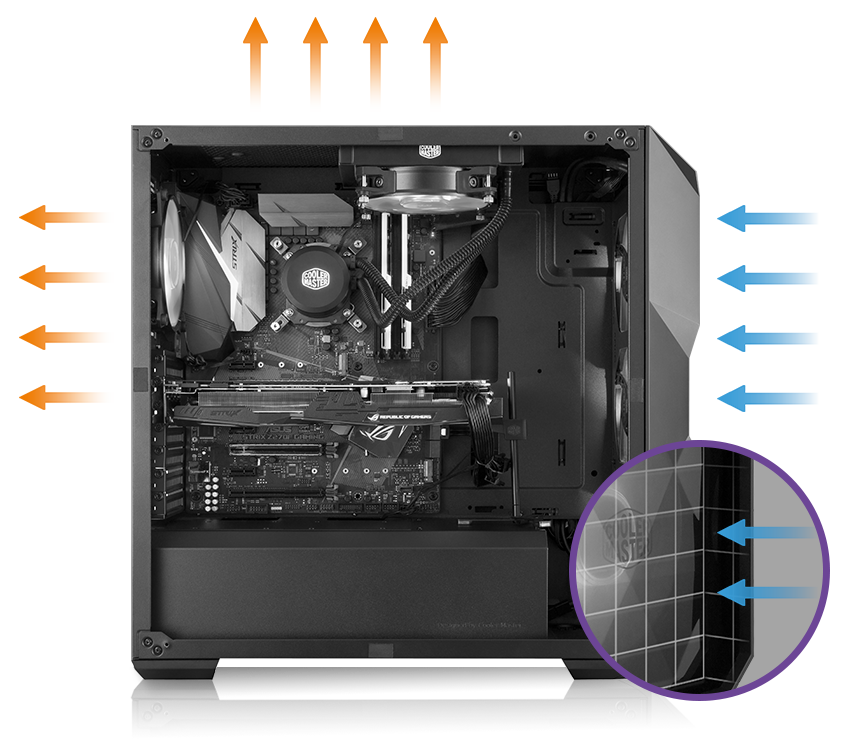

COOLING AND VENTILATION
The subtle placement of ventilation on the front panel balances aesthetics and efficiency by pulling air in on each side. Trim, that borders the entire panel, keeps the ventilation out of view by angling inward.

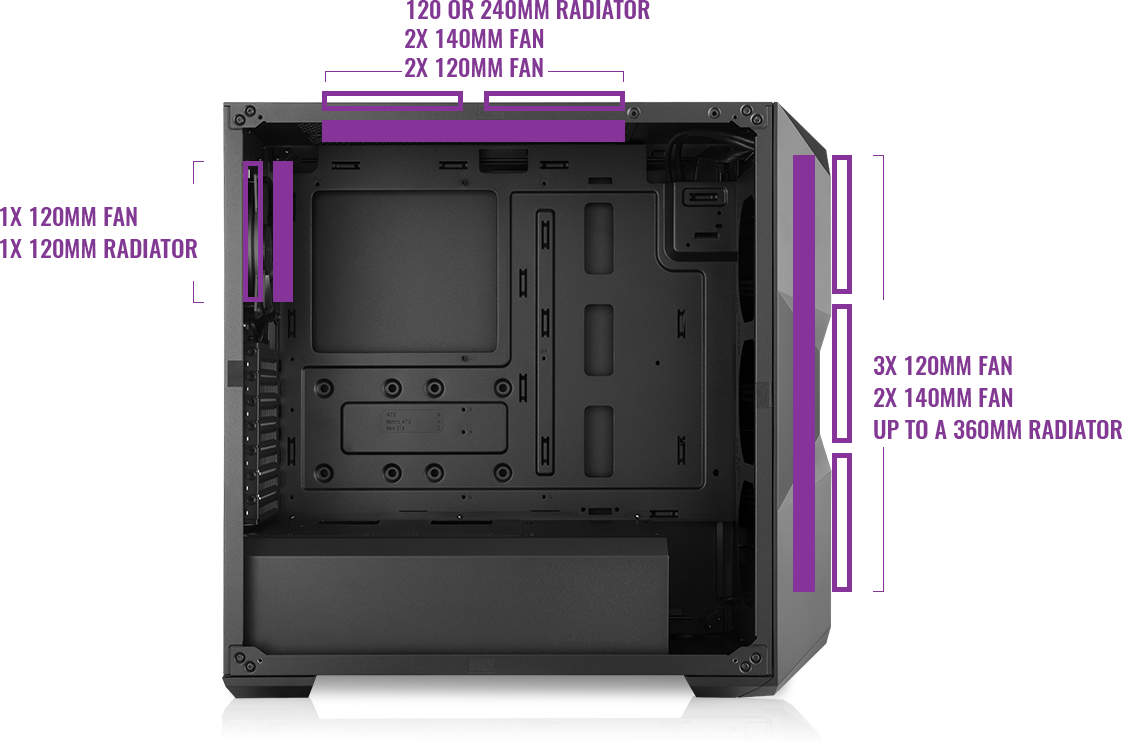

VERSATILE COOLING OPTIONS
Front: Three 120mm or two 140mm fans and up to a 360mm radiator. Top: Two 120mm or two 140mm fans and a 120/240mm radiator. Rear: One 120mm fan or radiator. All to ensure you don't have to compromise on performance.
MAIN COMPONENTS CLEARANCE
The MasterBox TD500L supports CPU-Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm, and Power Supplies up to a length of 180mm.

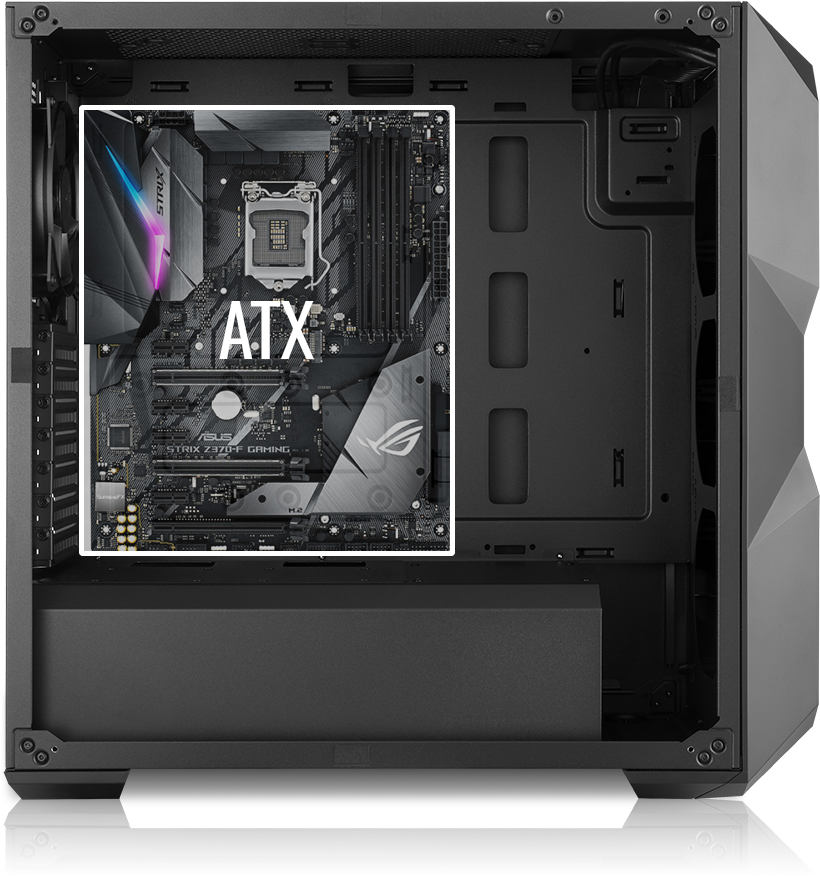

EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your system needs. Let your configuration stand out with an all-black background.
| Model | MCB-D500L-KANN-S00 |
|---|---|
| Dust Filtration | Front, Top, Bottom |
| Expansion Slots | 7 |
| Drive Bays | 3.5" Drive Bays-2 (Max. 2) / 2.5" Drive Bays-2 (Max. 6) |
| Product Dimensions | 493 x 217 x 468 mm |
| Weight | 5,55 Kg |
| Case Type | Mid Tower |
| Motherboard Form Factor | ATX, Mini-ITX, Micro-ATX |
| Casing Material | Steel |
| I/O Parts | USB 3.0 x 2, Audio In / Out |
| Side Panel | Transparent |
| Fans | Front: 120mm x 3 / 140mm x 2 Top: 120/140mm x 2 Rear: 120mm x 1 Bottom: N/A |
| Liquid Cooling | Front: 120/240/280/360mm / Rear: 120mm / Top: 120/240mm |
| Clearance | CPU Cooler: 165mm / 6.49" PSU: 180mm / 7.08" GPU: 410mm / 16.10" |
| PSU Included | N/A |
| PSU Support | Bottom mount, ATX |
| In the box | Main Unit User Manual Warranty Card |
| Warranty Period | 2 Year Warranty |
