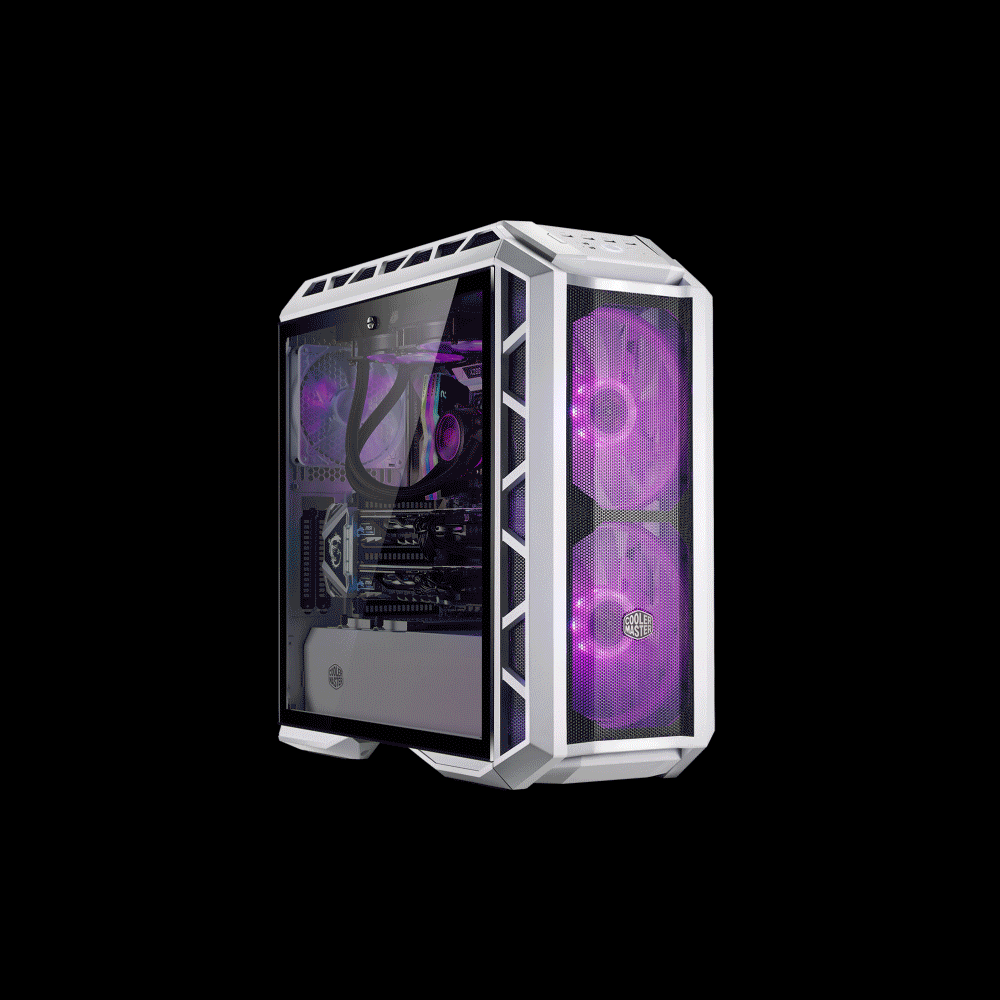

Cooler Master Mastercase H500P Mesh CPU Casing
MIND-BLOWING DESIGN
MASTERCASE H500P MESH WHITE
- Two 200mm RGB fans behind a Mesh Front Panel
- Covers for Clean Building
- Vertical Graphics Card Mount
- Light Grey Tinted Tempered Glass Side Panel
- Liquid Cooling Ready
- RGB Controler and 1 to 3 Splitter Cable for RGB LED Fans

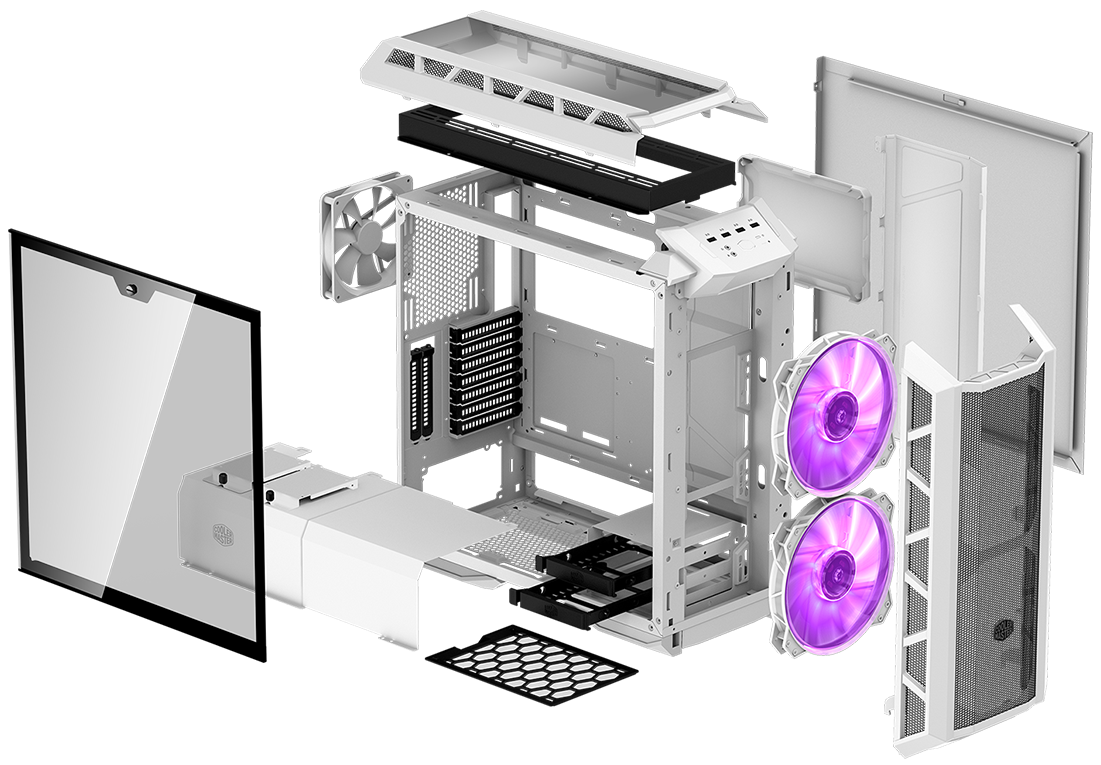

BUILDER FOCUSED
The H500P's design allows for easy disassembly.All of the panels can be easily taken off, ideal for CaseModders looking to paint their PC.

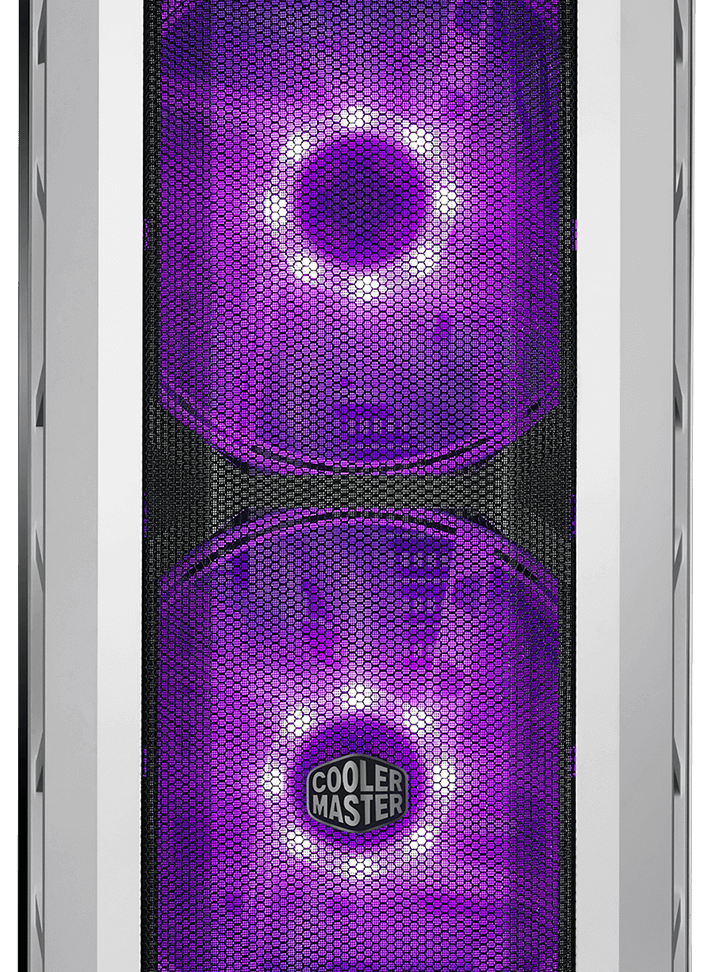

TWO 200MM RGB FANS BEHIND A MESH FRONT PANEL

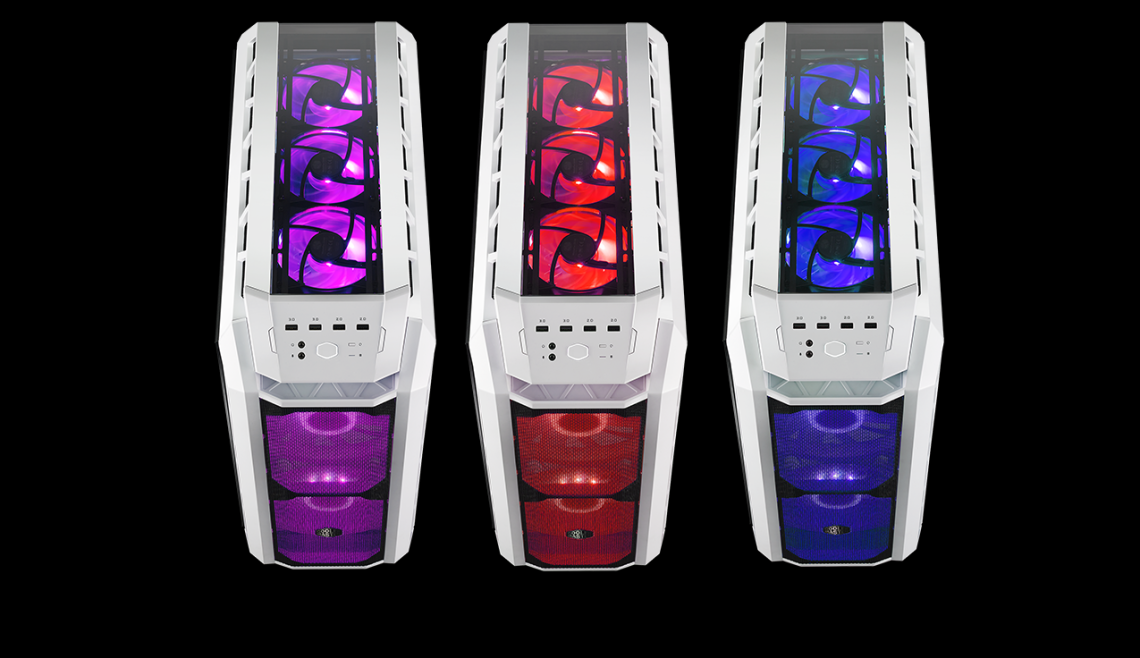

Optimized airflow is guaranteed with a complete mesh front panel, providing plenty of air intake for the two pre-installed 200mm RGB fans. Use RGB lighting to create a captivating build in your preferred color theme.
COVERS FOR CLEAN BUILDING
A PSU shroud, the CPU cut out cover and additional cable covers take clean cable management to the next level. Assemble clean builds like a pro!.
- 1. Cable Management Cover
- 2. CPU Cut Out Cover
- 3. PSU Shroud
- 4. Clean Cable Routing

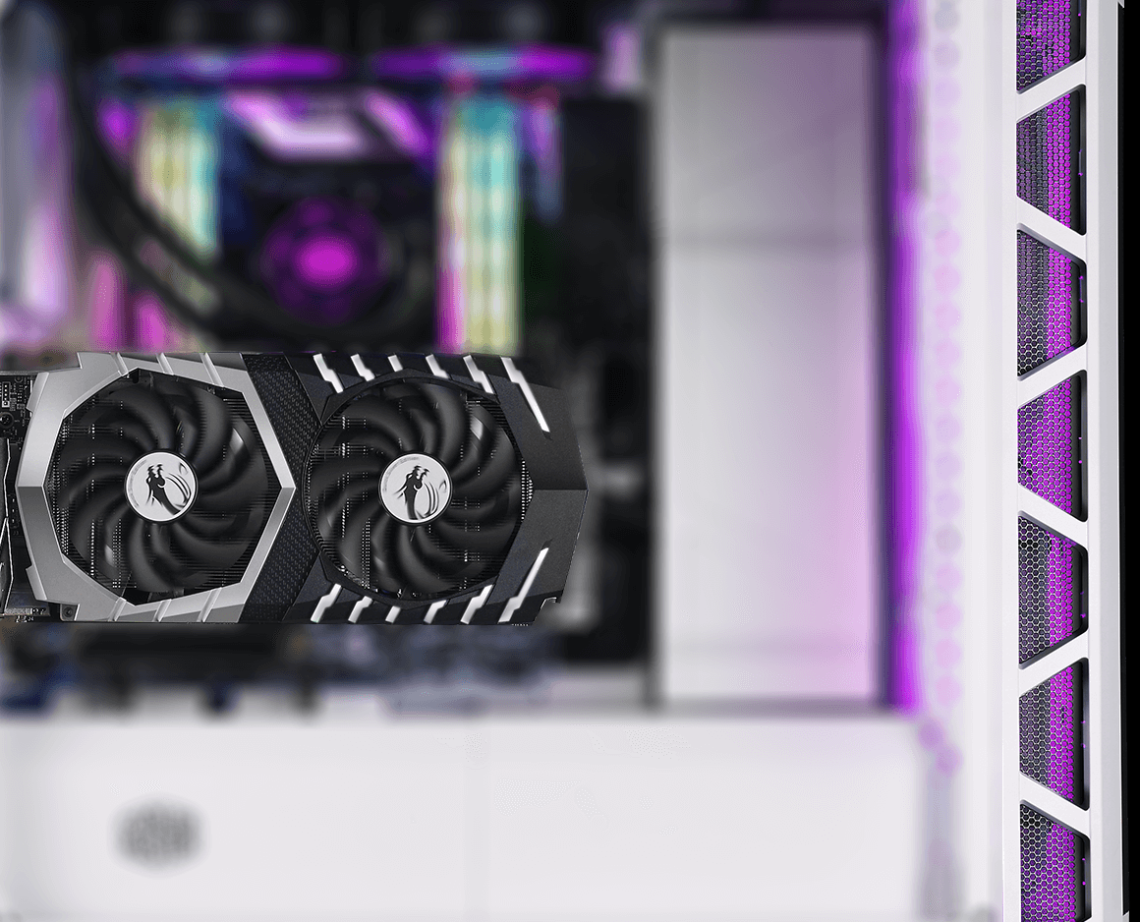

SHOW OFF YOUR GRAPHICS CARD
Two additional PCI slots at the rear enable you to show off one graphics card in the vertical position. * Additional Riser Cable needed to use your graphic card vertically.

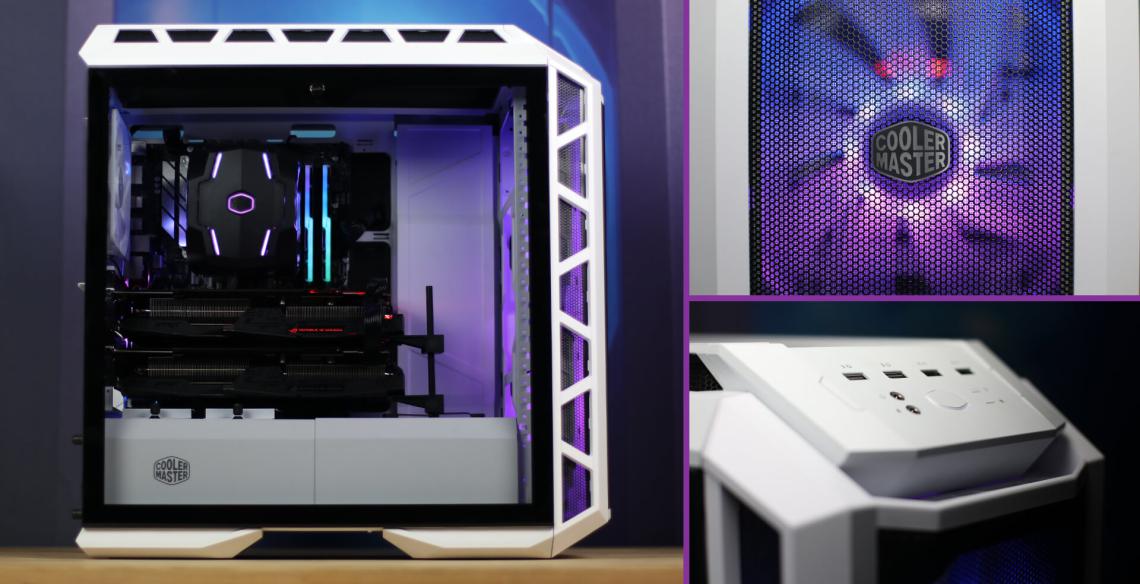

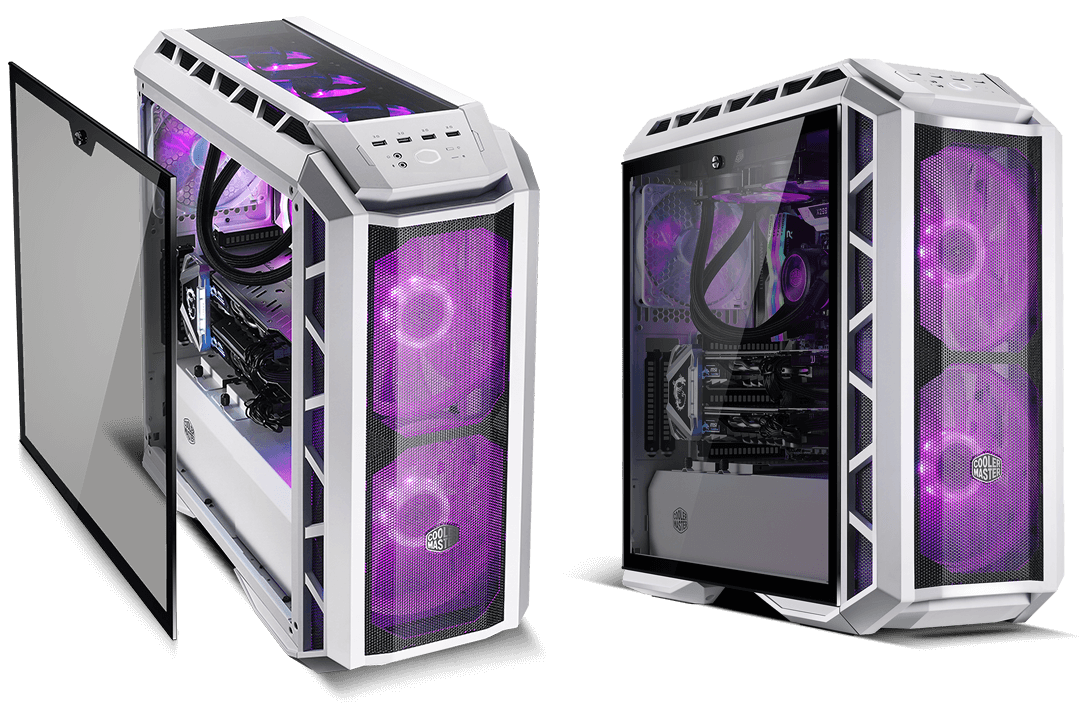

CLEAR VIEW INSIDE
The MasterCase H500P Mesh White has a light grey tinted tempered glass side panel and plastic top cover, making it ideal for showcasing your build with (RGB) lighting.
LIQUID COOLING READY
The MasterCase H500P Mesh White accommodates up to a 360mm radiator on the top and front.

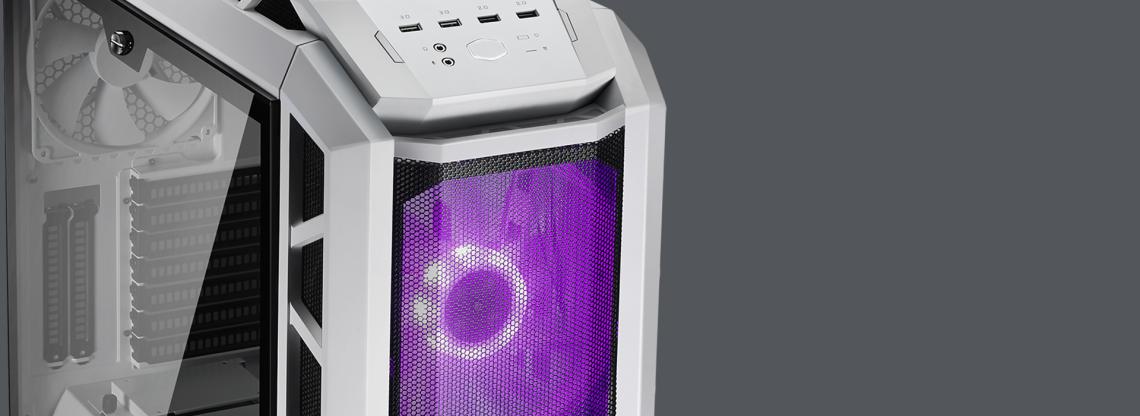

AIRFLOW OPTIMIZATION
The MasterCase H500P Mesh White is optimized for better airflow through its front mesh.
| Model | MCM-H500P-WGNN-S00 |
|---|---|
| Expansion Slots | 7 + 2 (Support vertical graphics card installation) |
| Drive Bays | 5.25"-0 2.5" / 3.5"- 2 2.5" SSD- 2 (Drive Bay support up to 5) |
| Product Dimensions | 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch |
| Weight | 11.6 kg |
| Case Type | Full Tower |
| Motherboard Form Factor | ATX, Mini-ITX, Micro-ATX |
| Casing Material | Steel |
| I/O Parts | USB 3.0 x 2 USB 2.0 x 2 Audio In & Out (supports HD Audio) |
| Side Panel | Transparent |
| Fans | Top: 120/140mm fan x 3 or 200mm fan x 2 Front: 120/140mm fan x 3 or 200mm fan x 2 Rear: 120/140mm fan x 1 |
| Liquid Cooling | Top: 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 55mm) Front: 120mm, 140mm, 240mm, 280mm, 360mm Rear: 120mm, 140mm |
| Clearance | CPU Cooler: 190mm / 7.5 inch GPU: 412mm / 16.2 inch |
| RGB Lights | Yes |
| PSU Included | N/A |
| PSU Support | Bottom mount, ATX PS2 |
| In the box | Main Unit User Manual Warranty Card |
| Warranty Period | 2 Year Warranty on Power Supply All Other Products 1 Year Warranty |
