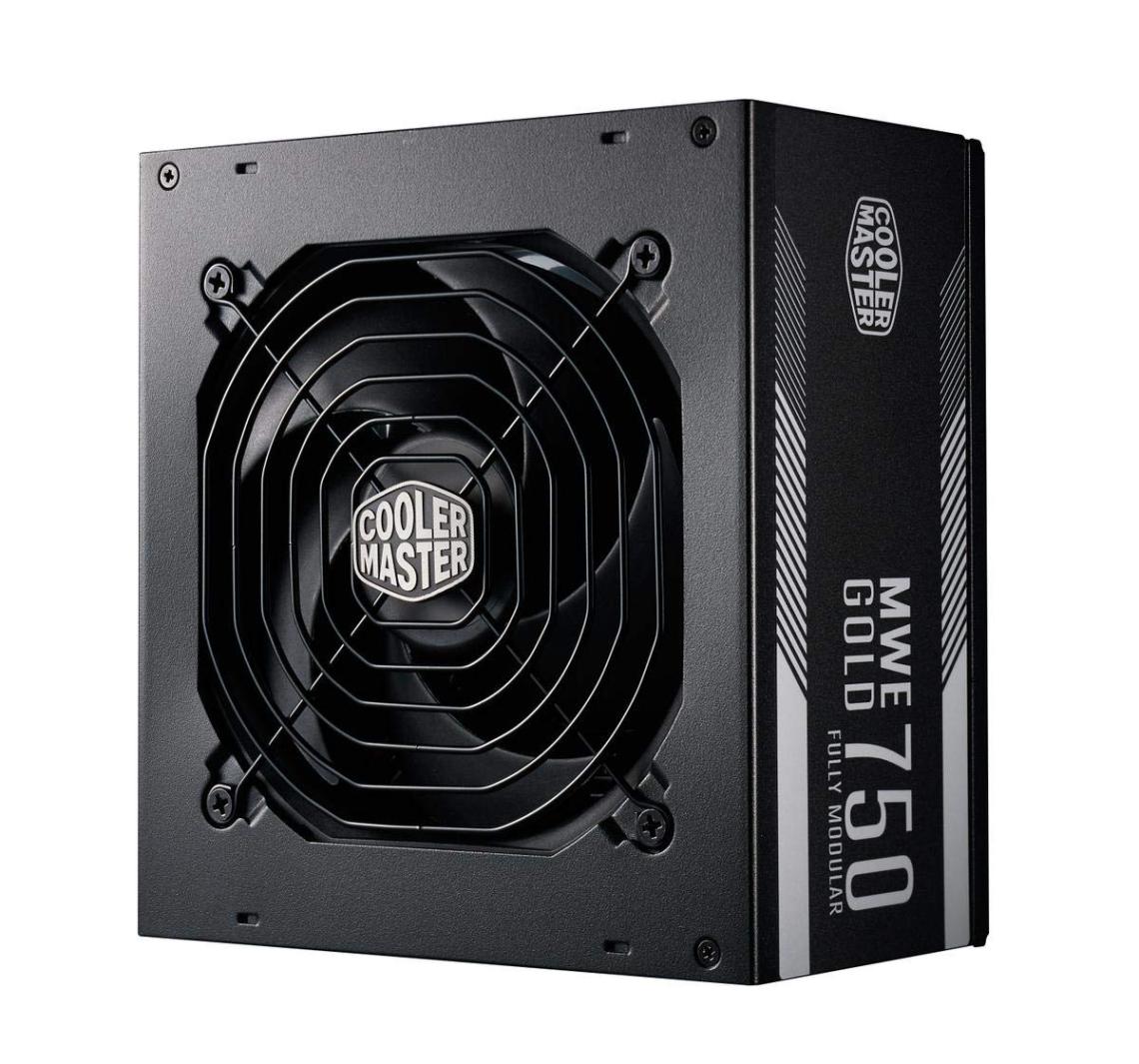

Cooler Master 750 Gold Full Modular 80+ MWE MPY-7501-AFAAG

NPR 35,000.00
In stock
SKU
coolermaster-mpy-7501-afaag

The MWE gold offers a highly efficient, affordable power solution with fully modular cabling. Enjoy consistent 90% efficiency With an 80 Plus Gold certification. Cooler Master’s design techniques ensure improved efficiency while maintaining low temperatures and quiet operation. The high quality, heat resistant components maintain gold level performance even at increased temperatures up to 45°C. A near quiet Silence Fan with an exclusive LDB bearings reduces noise and lasts longer than standard fan bearings. Modular cables improve airflow by reducing cable bulk. Be bold, power with gold.

  • Full modular flat cables - full modular flat cables are easy to install, reduce clutter, and maximize airflow,
  • 80 plus Gold certified - the 80 plus Gold certification guaranties a minimum typical efficiency of 90%,

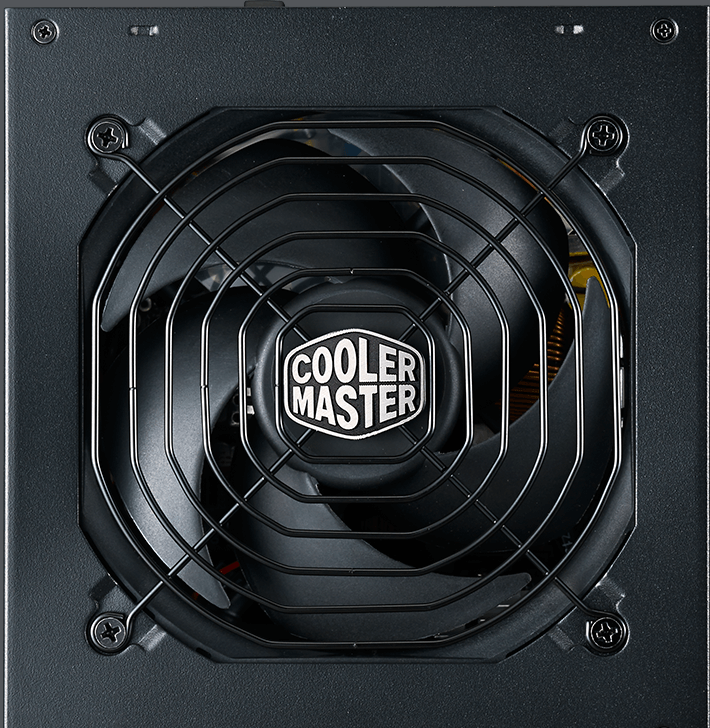

  • Durable and silent LDB bearing - silence technology combines sealed LDB bearings with quiet fan blades delivering a long
  • lifetime of quiet cooling,
  • Proven Thermal resistance - engineered to operate at full performance in temperatures up to 45°C, providing reliability in even the hottest environments,
  • High efficiency and stable output - the mew Gold’s full-bridge design coupled with LLC, synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs,

BE BOLD,POWER WITH GOLD

MWE GOLD 750 80 PLUS GOLD CERTIFIED 120MM LDB FAN ADVANCED CIRCUITRY FLAT & FLEXIBLE CABLES 5 YEAR WARRANTY

MWE GOLD 750 FULLY MODULAR

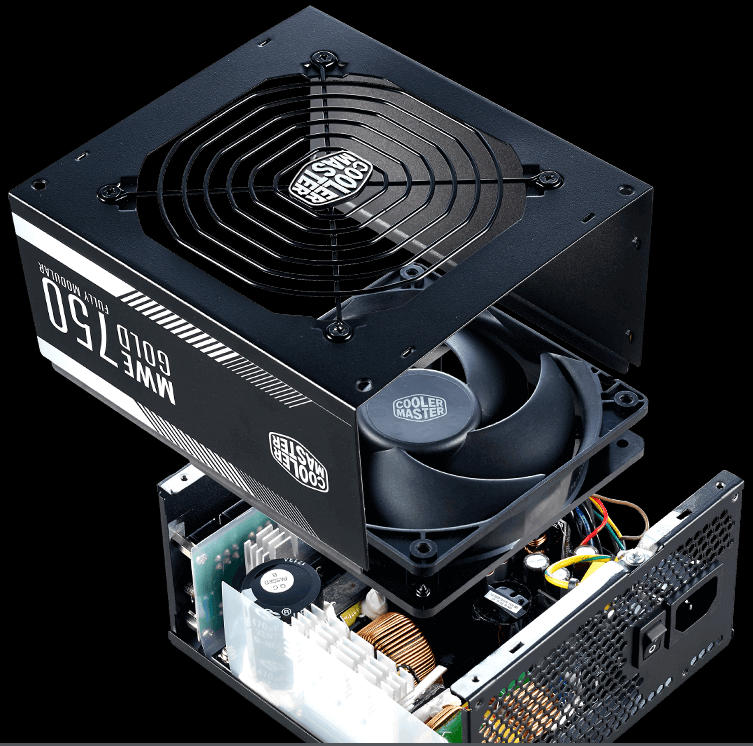

Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45°C. The Silencio fan and exclusive LDB bearing provides nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single +12V line ensures all components are fed the same stable output regardless of which cable you use. Be bold, power with gold.

80 PLUS GOLD CERTIFIED

This certification guarantees a typical efficiency of 90% under normal operating conditions.

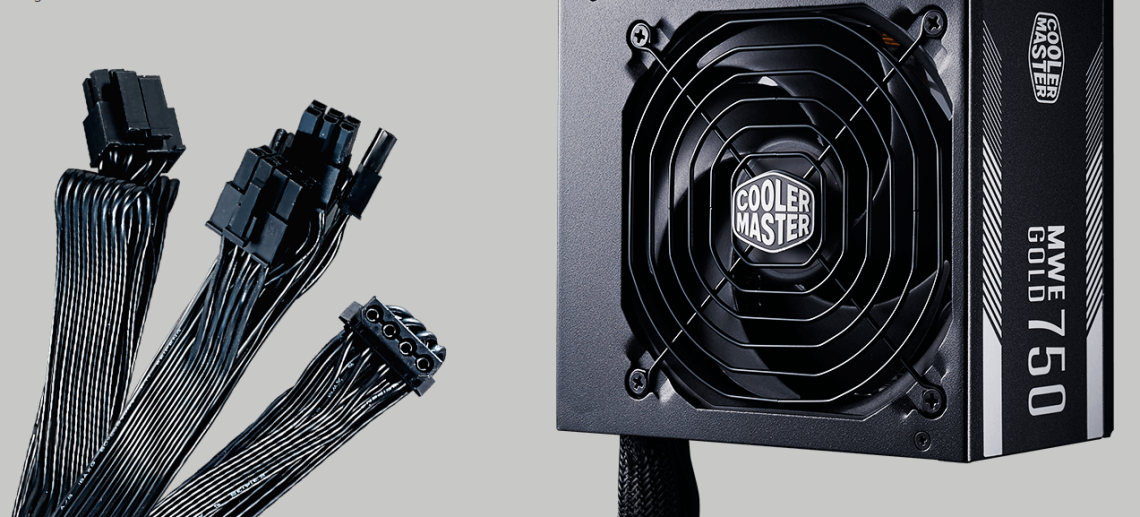

FLAT & FLEXIBLE CABLES

The MWE Gold series adopts black flat cables for better and more flexible cable management, beneficial for airflow even in smaller cases.

ADVANCED CIRCUITRY

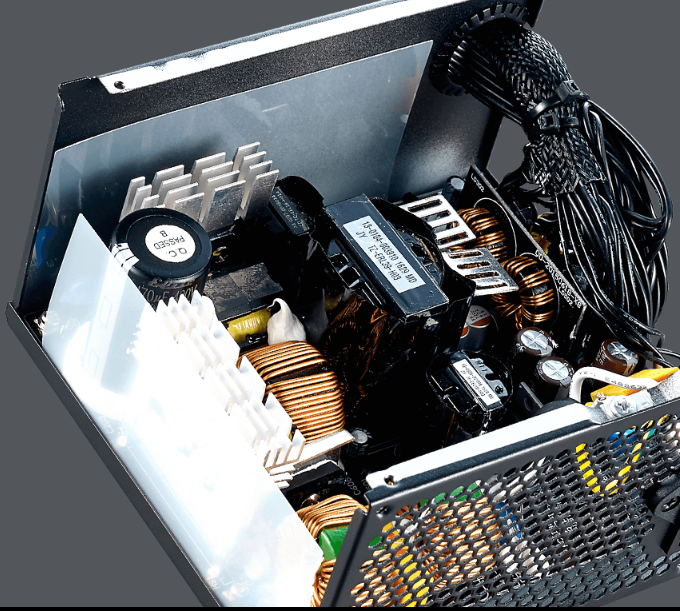

The MWE Gold's full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.

5 YEAR WARRANTY

This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchas

More Information
Model MPY-7501-AFAAG
Input Voltage 100-240V
Input Current 12-6A
Input Frequency Range 50/60Hz
PFC Active PFC (>0.95 typical)
Power Good Signal 100-500ms
Efficiency 90% Typically
Protection OVP / OPP / UVP / SCP / OTP
Product Dimensions L : 6.3 inches
W : 5.9 inches
H : 3.4 inches
Weight 5.5 pounds
Type ATX
Voltage +12 Volts DC
Connector 20 Pin Molex ATX Power Connector
Modular Full-Modular
Operation Temperature 0-45°C
Regulatory CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Fan LDB,120mm
Connector MB 24 Pin : 1
CPU 12V 4+4 Pin: 1
SATA : 8
Peripheral 4 Pin : 6
FDD Cable 4 Pin : 1
PCI-e 6+2 Pin : 4
Certifications CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
OVP / OPP / UVP / SCP / OTP
In the box Main Units,
User Manual,
Warranty Card,
Width 5.9 inches
Height 3.4 inches
Depth 6.3 inches
Warranty Period 5 Year Manufacturer Warranty.
Covered In Warranty Warranty of the product is limited to manufacturing defects only.
Not Covered In Warranty Warranty Does Not Cover Any External Accessories, Damage Caused To The Product Due To Improper Installation By Customer, Normal Wear And Tear.
