Cooler Master V1000, Full Modular 80+ Gold Certified 1000W Power Supply
Cooler Master developed the V-series to re-ascertain its position as the worlds top power supply brand. Based on a brand new platform, it features outstanding efficiency, especially at typical low idle loads, excellent hold up times, voltage stability and ripple suppression. It only uses highest grade Japanese capacitors, most of them solid capacitors, as well as a massive high quality 42mm transformer. And thanks to high quality FDB fans V-series PSUs are extremely cool and quiet. The V-series uses a fully modular cable system with beautiful all black, extra slim flat-ribbon cables. This makes cable management a breeze and results in nice looking clean builds with the best possible airflow.
- Fully modular cable design incorporates a single 1000W +12V output that delivers up to 83A,
- 80 PLUS Gold certified: up to 93% efficiency @ 50% load,
- Silent 135mm FDB fan for lower noise and longer lifespan,
- Eight PCI-E 6+2 pin connectors to support high-end graphics cards,
- 100% high quality Japanese capacitor ensures performance and reliability,
- Reliable 1-year warranty,
- Nvidia GeForce RTX 2080 Ti, RTX 2080 and RTX 2070 ready!,
THE GOLD STANDARD
Cooler Master developed the V-Series to re-ascertain its position as the world's top power supply brand. Based on a new platform, V-Series power supplies feature outstanding efficiency (especially at typical low idle loads), excellent hold up times, voltage stability, and ripple suppression. In some cases, V-Series PSUs have been shown to surpass even Platinum level testing. Only the highest grade Japanese capacitors are used, most of which are solid capacitors, as well as a massive high quality 42mm transformer.
LESS CABLES. LESS CLUTTER.
Feature a design that allows you to only connect cables that your system needs. Fewer cables mean less mess and better airflow inside your case.
QUALITY YOU CAN SEE

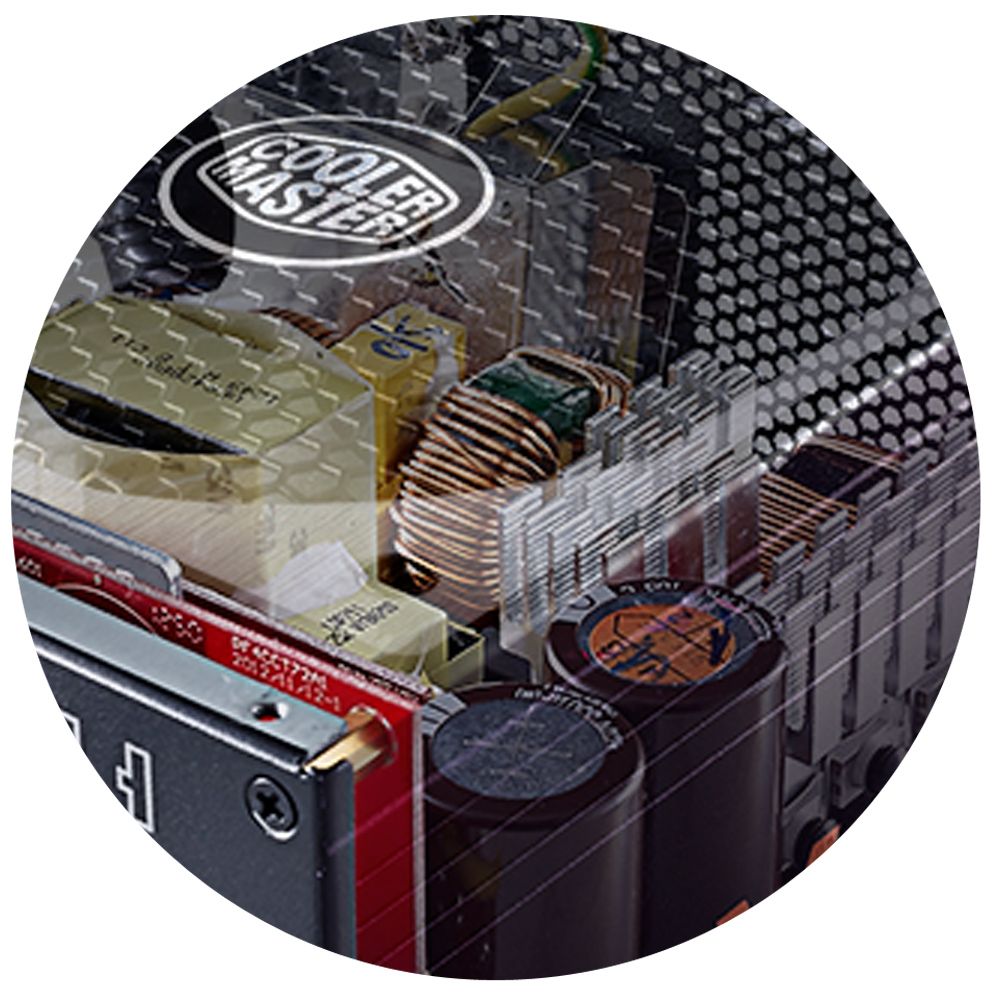

Feature high quality Japanese capacitors for many benefits including increased longevity, reduced ripple and electrical instabilities, and better efficiency and protection.
SILENT, LONG-LASTING FAN
A 135mm Fluid Dynamic Bearing (FDB) fan helps keep internals running cool. A thin film of oil constantly separates the metal components of the bearing structure, resulting in extremely quiet fan operation and longevity.
EFFICIENCY
Efficiency certification with up to 90% efficiency at 50% load, saving you money on your electricity bill.
| Model | RS-A00-AFBA-G1 |
|---|---|
| Input Voltage | 90-264Vac (Auto Range) |
| Input Current | 12 - 6A |
| Input Frequency Range | 60 - 50Hz |
| PFC | Active PFC (>0.9) |
| Power Good Signal | 100-500ms |
| Efficiency | 90% Typically |
| Protection | OVP/UVP/OPP/OTP/SCP |
| Product Dimensions | W : 150 mm L : 170 mm H : 86mm |
| Weight | 998 g |
| Type | ATX |
| Voltage | +12 Volts DC |
| Connector | 20 Pin Molex ATX Power Connector |
| Modular | Full-Modular |
| Operation Temperature | 0~40°C |
| Regulatory | CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC |
| Fan | Silent FDB 135mm |

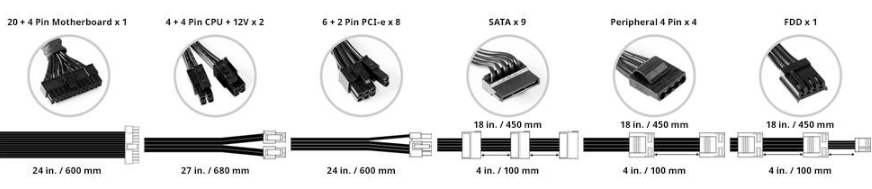

| Connector | M/B 20+4 Pin Connector x 1 CPU 4+4 Pin x 2 PCI-e 6+2 Pin x 8 SATA x 9 4 Pin Peripheral x 4 4 Pin Floppy x 1 |
| Certifications | 80 Plus Gold |
| In the box | Main units, User Manual, |
| Width | 150 mm |
| Height | 86mm |
| Depth | 170 mm |
| Warranty Period | 1 Year Manufacturer Warranty. |
| Covered In Warranty | Warranty of the product is limited to manufacturing defects only. |
| Not Covered In Warranty | Warranty Does Not Cover Any External Accessories, Damage Caused To The Product Due To Improper Installation By Customer, Normal Wear And Tear. |
