CoolerMaster MasterWatt Maker 1500 Digital Power Supply All-Aluminum 80+ Titanium 94% Efficiency
Cooler Master's first all aluminum case with Titanium 94% efficiency digital power supply unit offers unbeatable performance in tandem with unparalleled oversight and control via our exclusive Cooler Master Connect app. The power is in your hand.
- 1500Watts of Continuous Digital Power,
- Single and Multi Rail Modes with Low Ripple,
- Exclusive Real-time Control Via CM Connect App,
- 80PLUS Titanium 94% Efficiency with 3D Circuit Design,
- Silencio 135mm PWM Fan.
Real Power, Real Control

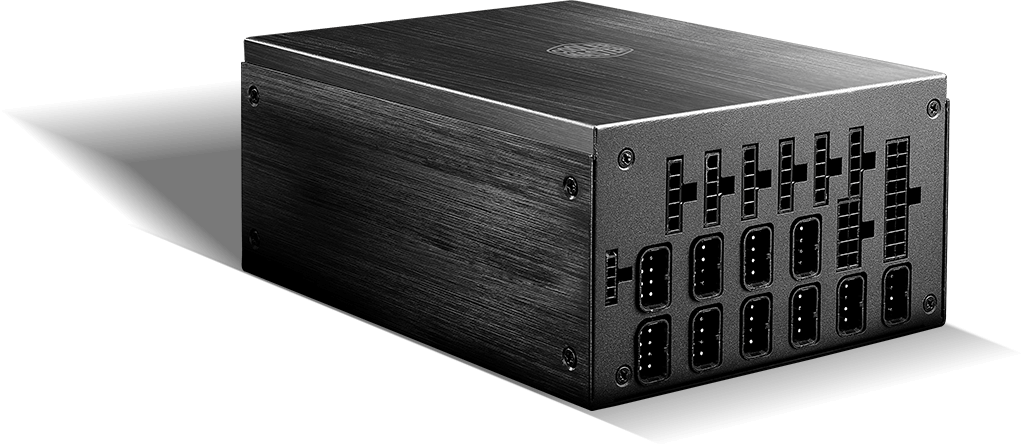

MASTERWATT MAKER 1500
Brains, Strength and Looks
Cooler Master's first all aluminum, Titanium 94% efficiency power supply unit offers unbeatable performance in tandem with paralleled oversight and control via our exclusive Cooler Master Connect app.

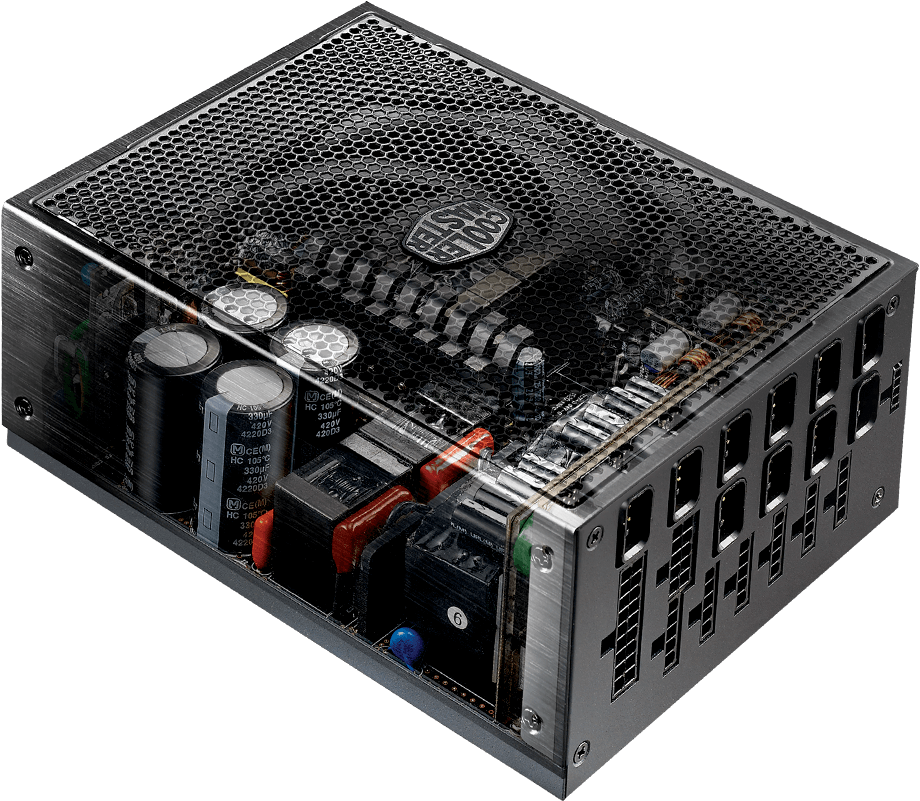

Real Power
Our flagship power supply comes with an award-winning design, an efficiency rating few have managed to reach, and the control perks of a high-end digital signal processor. All of this combines into a whopping 1500 watts of continuous power that can run safely over a conventional household outlet.
Real Control
By taking advantage of the digital processor, you can also control, monitor, and adjust your MasterWatt Maker in real-time with Cooler Master Connect, available in both mobile and desktop versions.

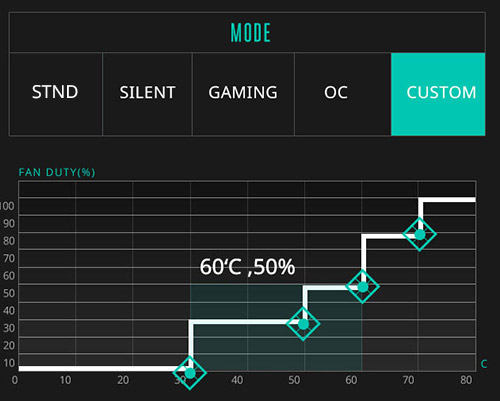

Preset Modes
Optimize your system with just one touch for all of your personal or professional preferences.

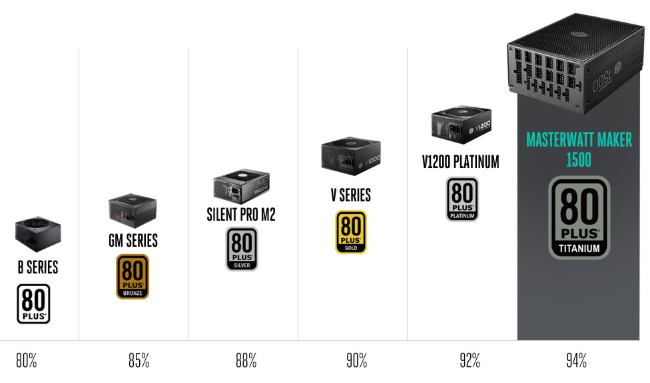

World-class Efficiency
No longer do you have to worry about buying a PSU that hopefully matches your average load, and focus instead on how quiet and cool this level of efficiency keeps your PSU.

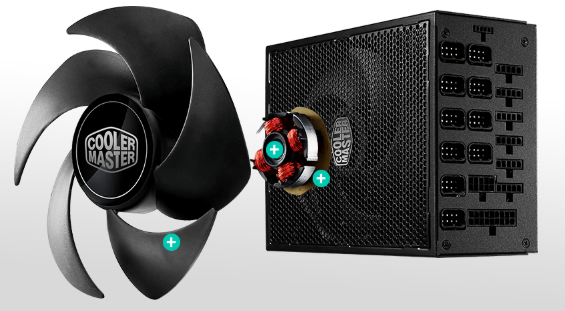

Soundless Performance
Cooler Master's premium Silencio FP 135mm adjusts its speed depending on the load to setting that you can set in your Cooler Master Connect app. That is, if the fan even needs to spin at all.

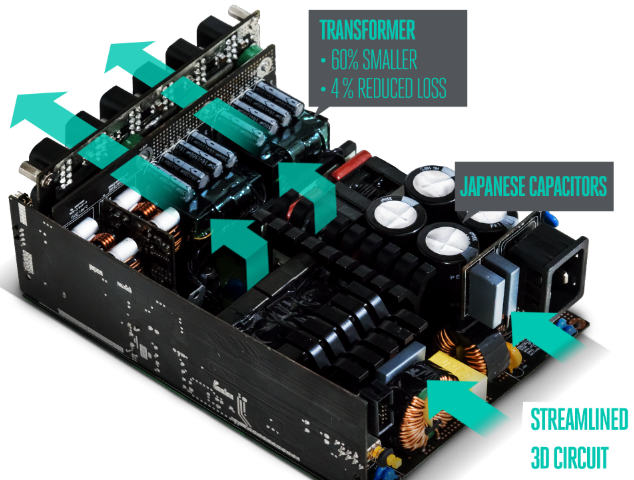

Streamlined 3D Technology
Cooler Master's exclusive, next-gen 3D circuit design creates a direct, uncluttered expressway of power that doesn't get caught in messy backstreets of wiring and added components. Combined with premium components, nearly lossless efficiency means:

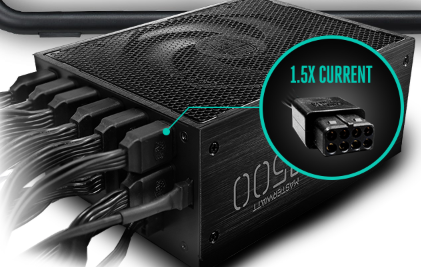

Fully Modular, High-Capacity Cables
MasterWatt Maker's fully modular, flat cable connectors go beyond the standard with a wholly redesigned plug. The plug creates surface contact efficient enough to carry 1.5x the current of normal connectors.
UPGRADE

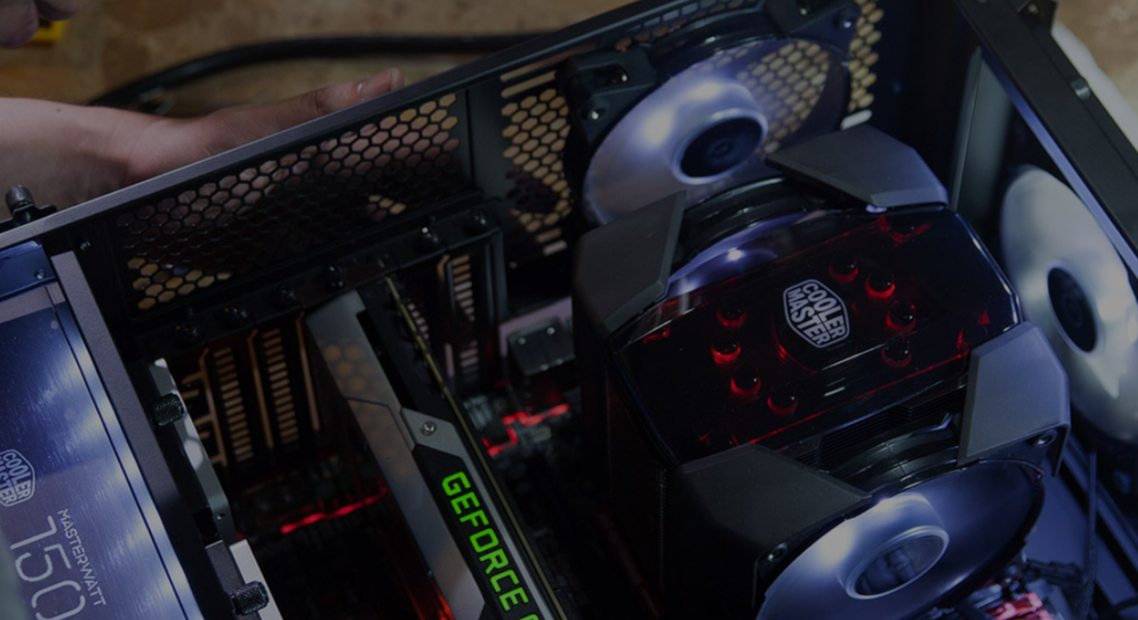

For casual users seeking peace of mind to pros pushing the limits of their hardware, and anyone in between who values accurate performance data when troubleshooting or otherwise, the MasterWatt Maker is for you.
| Model | MPZ-F001-AFBAT |
|---|---|
| Input Voltage | 100-240Vac |
| Input Current | 15-7.5A |
| Input Frequency Range | 47-63Hz |
| PFC | Active PFC (over 0.95 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 90-94% Typically |
| Protection | OPP,OVP,OCP,SCP,OTP,BOP |
| Product Dimensions | L : 200mm W : 150mm H : 86mm |
| Weight | 9.7 lbs |
| Type | ATX |
| Voltage | +12 Volts DC |
| Connector | 20 Pin Molex ATX Power Connector |
| Modular | Full-Modular |
| Operation Temperature | 0~40°C |
| Regulatory | TUV,CE,FCC,BSMI,EAC,RCM,CCC,KC |
| Fan | 135mm Silencio FP fan |
| Connector | MB 20+4 Pin : 1 CPU 12V 4+4Pin : 2 PCI-e 6+2 Pin : 12 SATA : 20 4Pin Peripheral : 12 4Pin Floppy : 1 |
| Certifications | 80 Plus,Titanium. |
| In the box | Main units, User Manual, Warranty Card. |
| Width | 150mm |
| Height | 86mm |
| Depth | 200mm |
| Warranty Period | 1 Year Manufacturer Warranty. |
| Covered In Warranty | Warranty of the product is limited to manufacturing defects only. |
| Not Covered In Warranty | Warranty Does Not Cover Any External Accessories, Damage Caused To The Product Due To Improper Installation By Customer, Normal Wear And Tear. |
