Cooler Master Master Fan pro 120 Air Pressure
MasterFan Pro 120 Air Pressure

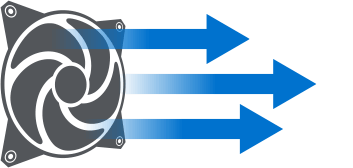

In tackling your case’s cooling needs, there is no ‘one fan fits all.’ Each of the three 120mm fans in the MasterFan Pro series provides a specific air cooling solution while all being fitted with multiple layers of our exclusive noise reduction technology and adjustable speed profiles. Put together, they work in harmony to cool your entire case and its components. Air Pressure fans are ideal for funneling concentrated air short distances at hot components or tight spaces. Recommended for use on the front panel to penetrate mesh wiring and tightly packed HDDs.
Introducing the MasterFan Pro series
In tackling your case's cooling needs, there is no ‘one fan fits all.’ Each of the three fans in the MasterFan Pro series provides a specific air cooling solution while all being fitted with multiple levels of our exclusive noise reduction technology. Alone, they excel at their targeted functions. Put together, they are a complete cooling solution for your entire case.






Designed from the Skies
AIR PRESSURE - HELI-INSPIRED
Draws from both jet engine and helicopter blade designs. The blades propel air farther than the Air Pressure design while still retaining more static pressure than Air Flow.

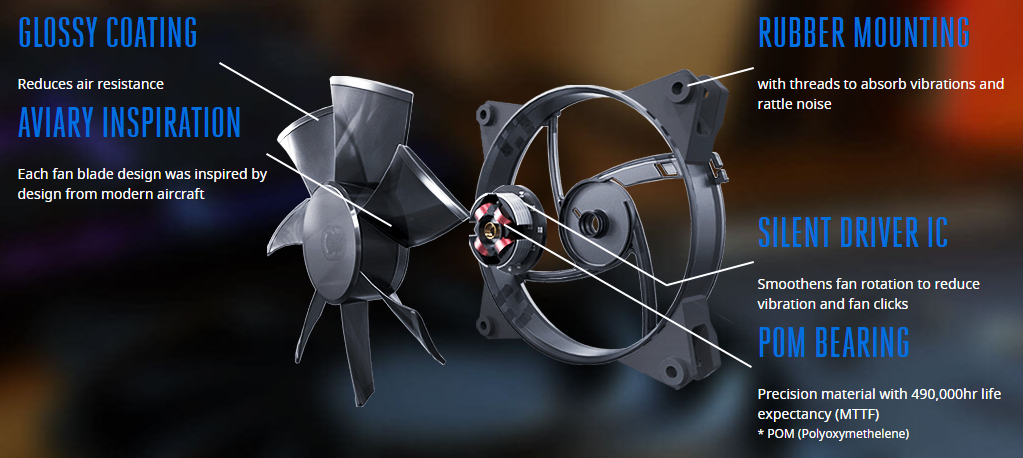

The Design Advantage

Select Your Silence

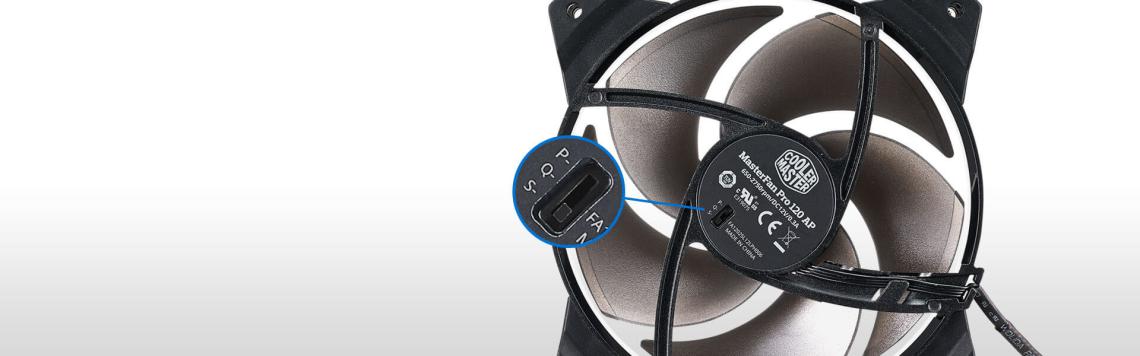

Just as there is no one fan that fits all, case cooling is also highly individual. Each MasterFan Pro provides three profiles to adjust between your personal mix of silence and performance.




A Complete Thermal Solution

Model | MFY-P2NN-15NMK-R1 |
---|---|
UPC# | 884102028687 |
Air Pressure (mmH2O) | S Mode (Silent) 1.45 mmH2O ± 10% Q Mode (Quiet) 3.14 mmH2O ± 10% P Mode (Performance) 4.6 mmH2O ± 10% |
Rated Voltage | 12 VDC |
Connector | 4-Pin (PWM) |
Product Dimensions | 120(L) x 120(W) x 25(H) mm |
Weight | 158g |
Fan Speed (RPM) | S Mode (Silent) 650-1,550 RPM ± 10% Q Mode (Quiet) 650-2,250 RPM ± 10% P Mode (Performance) 650-2,750 RPM ± 10% |
Fan Life | Life Expectancy 490,000 hrs |
Airflow (CFM) | S Mode (Silent) 35 CFM ± 10% Q Mode (Quiet) 53.5 CFM ± 10% P Mode (Performance) 62.1 CFM ± 10% |
Fan Noise Level (dBA) | S Mode (Silent) 6 - 20 dBA Q Mode (Quiet) 6 - 30 dBA P Mode (Performance) 6 - 36 dBA |
In the box | Main Unit User Manual Warranty Card |
Warranty Period | 2 Year Warranty on Power Supply All Other Products 1 Year Warranty |
