TP-LINK TL-WR740N 150Mbps Wireless Router
150Mbps Wireless N Router
TL-WR740N
- 150Mbps wireless data rates ideal for video streaming, online gaming and internet calling
- Wireless security encryption easily at a push of WPS button
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
- WDS wireless bridge provides seamless bridging to expand your wireless network
WHAT This Product Does

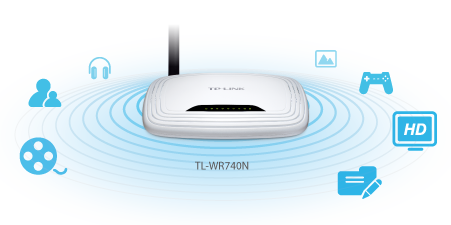

The TL-WR740N is a combined wired/wireless network connection device integrated with internet-sharing router and 4-port switch. The wireless N Router is 802.11b&g compatible based on 802.11n technology and gives you 802.11n performance up to 150Mbps at an even more affordable price. Bordering on 11n and surpassing 11g speed enables high bandwidth consuming applications like video streaming to be more fluid. You can enjoy a high quality experience when video streaming, VoIP, or online gaming wirelessly, with traditional g products was never very practical, from anywhere in your entire home.
Exceptional Wireless Performance with Affordable Price
TP-LINK TL-WR740N is a high speed solution that compatibles with IEEE 802.11b/g/n. Based on N technology, TL-W740N gives you 802.11n performance up to 150 Mbps at an even more affordable price, 9X the speed and 4x the range of traditional 11g products.Bordering on conventional 11N and surpassing 11G performance enabling high bandwidth-consuming application, such as video streaming, using VoIP, or online gaming, wirelessly which, with traditional g products was never very practical, from anywhere in your entire home. Enjoy N Power, G Price!

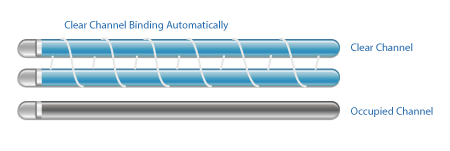

CCA Technology - Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
WPS
Instantly setup WiFi connections simply by pressing the "WPS" button.
IP QoS
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC.
Easy Setup
Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.
| Brand | TP-LINK |
|---|---|
| Model | TL-WR740N |
| Type | Wireless Routers Without Modem |
| Controls | Quick Setup, Security Button (WPS Compatible), Reset Button, Power On / Off Button |
| LED Indicator | Power, WLAN, 1, 2, 3, 4, WAN, WPS |
| Supported Software | NAT, Dos Firewall, DHCP |
| Operating System | Windows: 98SE, NT, 2000, XP, Vista, 7, MAC OS, NetWare, UNIX, Linux |
| Frequency | 2.4 ~ 2.4835GHz |
| Power Supply | 5V DC / 0.6Amp |
| Product Dimensions | 174 mm x 118 mm x 33 mm (W x D x H) |
| Weight | 150 g |
| Operating Humidity | 10%~90%RH, Non-condensing |
| Temperature | 0°C~40°C(32°F~104°F) |
| Standard IEEE | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Signal Rate | 11n : Up to 150Mbps(dynamic), 11g : Up to 54Mbps (dynamic), 11b : Up to 11Mbps (dynamic) |
| Wireless Speed | 150 Mbps |
| LAN / WAN | 10/100 Mbps |
| Antenna | External |
| Number of LAN Ports | 4 |
| Number of WAN Ports | 1 |
| WAN | RJ-45 |
| LAN | RJ-45 |
| Number of Antennae | 1 |
| Antennae Capacity | 5dBi Fixed Omni Directional |
| Encryption | 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Firewall | DoS, SPI, NAT, IP Address Filter, MAC Address Filter, Domain Filter, IP and MAC Address Binding |
| Other Security Features | Server, Client, DHCP Client List, Address Reservation |
| VPN | PPTP, L2TP, IPSec |
| SSID Support | Yes |
| Certification | CE Certification, FCC Certification, RoHS Certification |
| Other features | Wireless Functions: Enable / Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Management: Remote Management, Access Control, Local Management, Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ, Dynamic DNS: DynDns, NO-IP, Supports IPv6 and IPv4, 2.4 GHz Guest Network x 1 |
| In the box | TL-WR740N 1 fixed omni directional antennas Power supply unit Ethernet Cable Quick Installation Guide |
