Msi Meg Z790 Ace - Chipset For Intel 12th Generation Processors LGA 1700

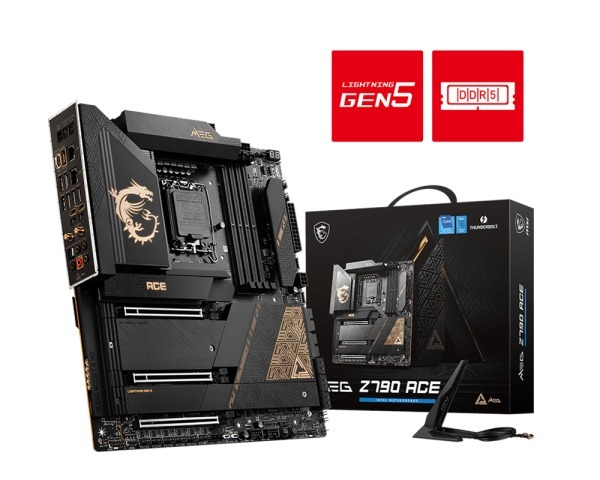

MEG Z790 ACE

Furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the 14th and 13th Gen Intel Core processor by combining elite hardware system support and premium durability, the MEG Z790 ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking the processor, memory, and graphics card at the highest level.

THE REVELATION OF LEGEND

The MEG series is revealed as a legend that represents the ultimate elegance in gaming.
With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.

Features

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Maximum 5 x M.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
Dual 2.5G LAN with latest Wi-Fi 6E solution: Onboard dual 2.5G LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery.
DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

Multi-GPU	AMD MULTI-GPU Support
Onboard Thunderbolt	Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
LAN	2x Intel® 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA

More Information

More Information
Brand	MSI
Model	MEG Z790 ACE
Launch Date	2021
Max Memory Size	256GB
ECC Memory Supported	Supports non-ECC, un-buffered memory
Memory Types	DDR5
4K Support	Yes
Max Resolution	1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz
Other Specifications	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 2x USB 5Gbps Type A ports 2x USB 20Gbps Type C ports
In the box	1 x Msi Processor
