Antec High Current Gamer Power Supply Unit HCG750 Bronze EC
High Current Gamer Bronze Series
750W
High Current Gamer Bronze Series
The latest generation of High Current Gamer Bronze power supplies delivers unparalleled stability and 80 PLUS® Bronze-certified efficiency, with 100% Japanese capacitors and fully-modular cable management and a quiet 135 mm Double Ball Bearing fan completes the package.
The CircuitShield™ suite of industrial -grade protections ensures that the power delivered to your system is safe and reliable in any environment.
High-performance Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
Based on a DC-DC topology.
5 Year Warranty
Antec Quality 5 year parts and labor warranty, and you get unlimited access to Antec's incomparable technical support and customer service.

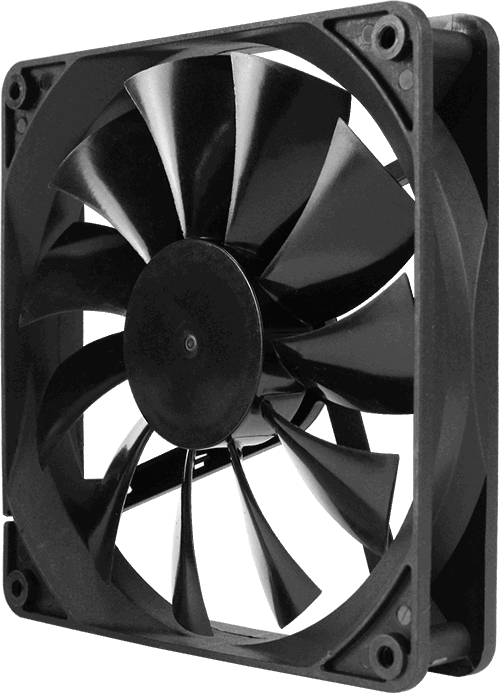

135mm DBB FAN
The 135 mm Double Ball Bearing (DBB) Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
Connectors
FullY Modular Cable Management System
Input / Output & Efficiency Chart
| Brand | Antec |
|---|---|
| Model | HCG750 |
| Input Voltage | 100-240 VAC ±10% |
| Input Current | 12A-6A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 89% Typically |
| Protection | OCP/OVP/SCP/OPP/OTP/SIP/NLO |
| Output Capacity | 750W |
| Product Dimensions | 165(L)*150(W)*86(H) |
| Weight | 1.62 kgs |
| Type | ATX |
| Voltage | +12 Volts DC |
| Connector | 20 Pin Molex ATX Power Connector |
| Modular | Full-Modular |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/EAC/FCC |
| Fan | 135mm DBB Fan |
| Connector | 1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 4 x 8(6+2) Pin PCI-E 9 x SATA 4 x Molex 1 x FDD |
| Certifications | 80 Plus Bronze |
| UPC | 0-761345-11543-8 HCG750 Bronze EC |
| In the box | Main Unit User Manual Warranty Card |
| Warranty Period | 5 Years Warranty |
