Asus Router RT-N14UHP High Power Wireless-N300 3-in-1 Router/ AP/ Range Extender
Consistently Praised for Networking Excellence!
Readers’ Choice, 5 Years Running! (2012-2016) “With a Readers' Choice Award win every year since 2012, Asus seems to make a different router for every budget and need. Respondents continue to be very satisfied with what the company has to offer.” – PC Magazine
The Most Consumer Recommended Router Maker of 2015!
PC Magazine
Full coverage with a 3-in1 high power router
ASUS RT-N14UHP Single-band Wireless-N300 high power router delivers three times the wireless coverage of standard N300 routers, giving uninterrupted coverage over two floors. A multi-purpose USB port allows printer, hard drive and 3G/4G sharing; while ASUS AiCloud support allows you to access, share, and stream files from your home PC to any internet-connected device.

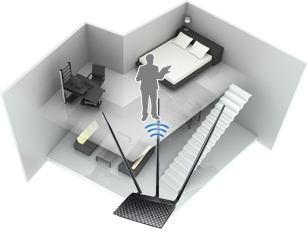

Multi-floor coverage*
Up to 300% coverage and stronger transmissions are perfect for larger homes and offices, delivered by detachable 9dBi high-gain antennas and an enhanced power amplifier. Alongside greater coverage, users benefit from fast 802.11n wireless for every need.
* The client device in the test is USB-AC56 and the actual performance may vary as a result of network conditions and environmental factors.

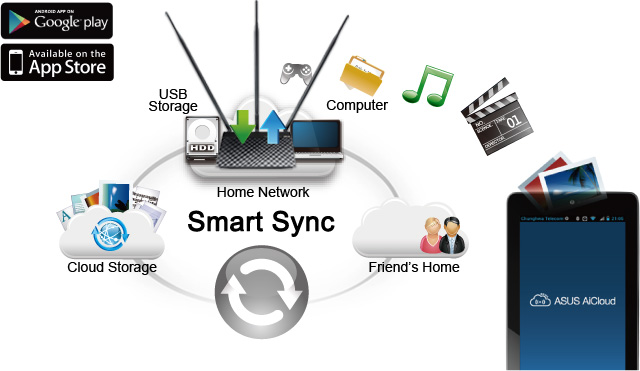

ASUS AiCloud – Your world on demand
ASUS AiCloud keeps you connected to your data wherever and whenever you have an internet connection. It links your home network and online Web storage service* and lets you access it through the AiCloud mobile app on your iOS or Android smartphone or through a personalized URL in a Web browser.
* Works with select Web storage services only.
Add external storage, printers, and other devices to your network
With built-in USB port, connect external storage, printers, and other devices to RT-N14UHP and share them throughout your network at once.
Robust control and optimization with ASUSWRT
With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. On top of 30-second setup,multi-device detection, and flexible settings that make the most of your network performance, it’s been upgraded with quick scanning of USB storage connected to routers to verify data integrity and drive health.
Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the RT-N14UHP has Quality of Service (QoS) standards that let you select how much bandwidth is prioritized for virtually any task. Plus, the traffic monitor allows you to check your Web usage in a clear graphical interface.*
*Features vary from model to model. Please refer to the specification page for the actual features.
Easy 3-step setup
Use your smartphone, tablet, or PC to effortlessly set up your ASUS router in less than 30 seconds* and in only 3 easy steps. Simply connect the cables to the router, open a Web browser, and follow the setup wizard to get you to the internet in no time.
Step1: Open web browser.
Step2: Enter ID/Password.
Step3: Done!
*ASUS-tested and verified setup time. Actual duration may vary by ISP, specific connection type, location, and other factors.
EZ switch
Software EZ switch provides a quick and easy way to change between router, repeater and AP modes The ASUS EZ Switch allows users to quickly and easily switch between 3 operation modes with only one touch.
Download and stream anywhere
Download Master and enhanced media server let you download and play multimedia files stored on router-attached USB storage on a wide range of compatible devices such as PC, pad, PS3, Xbox, and smart TV. Download Master can also download files while your PC is turned off, and allows you to manage and monitor download status remotely.
VPN server enabled
Easily set up a VPN server to browse the web and access data with MPPE encryption— no matter where you are.
Keep Up to Date!
Remember to always keep your device’s firmware up to date so you can benefit from the very latest service and security enhancements — and get exciting new features!
| Model | RT-N14UHP |
|---|---|
| Type | Wireless Routers With Modem |
| Controls | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1 LAN x 1 Wi-Fi x 1 WAN x 1 |
| Operating System | Windows® 10 Windows® 8.1 Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® XP Mac OS X Linux |
| Frequency | 2.4 GHz |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1 A current |
| Product Dimensions | 179 x 128 x 28 ~ mm (WxDxH) |
| Weight | 467 g |
| Standard IEEE | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna | External |
| No. Of USB Ports | 1 |
| Number of LAN Ports | 4 |
| Number of WAN Ports | 1 |
| WAN | RJ45 for 10/100 BaseT |
| LAN | RJ45 for 10/100 BaseT |
| Number of Antennae | 3 |
| Antennae Capacity | 9 dBi |
| Other Connectivity Features | Ports USB 2.0 x 1 |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support |
| VPN | IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server |
| Other features | Product Segment: N300 complete networking : 300 Mbps Memory 16 MB Flash 64 MB RAM Management:UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log SmartQoS - WMM - User definable rules for IP/MAC/Port - Upload and download bandwidth management - ACK/SYN/FIN/RST/ICMP with highest priority Parental Control Guest Network : 2.4 GHz x 3 Enhanced media server (AiPlayer app compatible) - Image : Jpeg - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov AiCloud personal cloud service 3G/4G data sharing Printer Server - Multifunctional printer support (Windows only) - LPR protocol support Download Master - Support bt, nzb, http, ed2k - Support encryption, DHT, PEX and magnet link - Upload and download bandwidth control - Download scheduling AiDisk file server - Samba and FTP server with account management IPTV support |
| In the box | RT-N14UHP x 1 RJ45 Cable x 1 9dbi Antenna x 3 QSG & Warranty Card x 1 Power Supply x 1 |
| Warranty Period | 2 Years Warranty |
