Cooler Master CM 690 III (693) CPU Casing

Introducing the new generation of iconic CM 690 series – CM 690 III

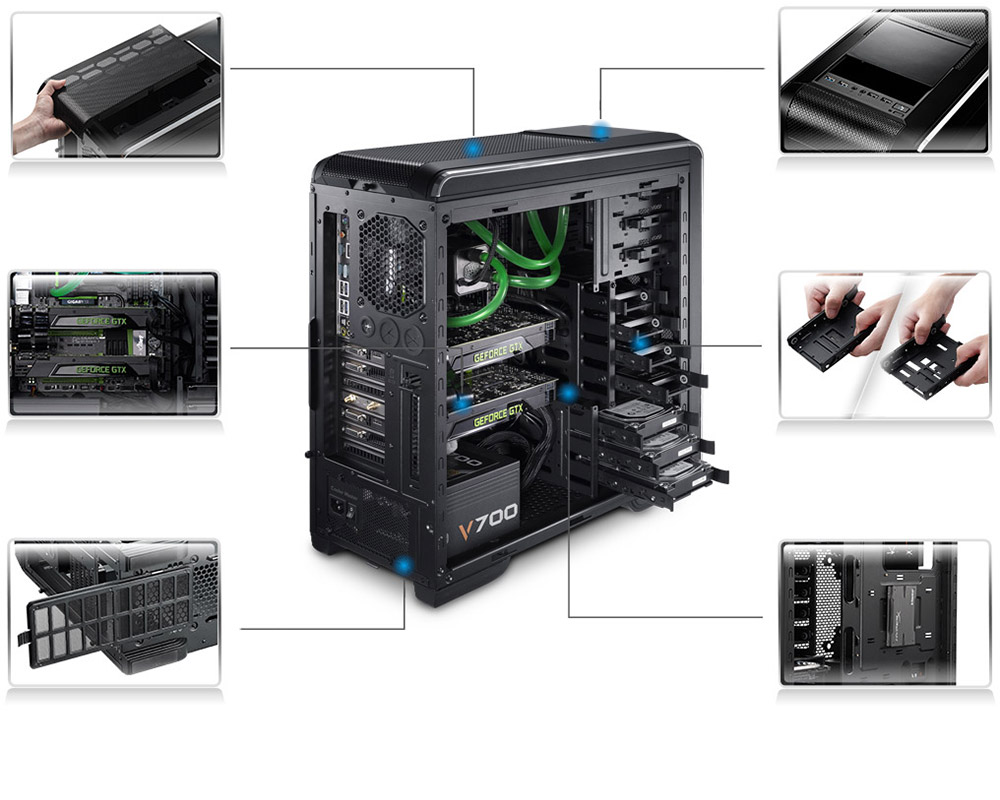

CM 690 III is a revolutionary update to the popular CM 690 II mid-towers. The exterior retains the curved metal mesh look the series is known for. The interior has been completely updated – the HDD/SSD combo cage can be switched between 3.5-inch or 2.5-inch drives by adjustable trays without any screw. There's enough room for a 240mm liquid cooling radiator at the top or front, 120mm in the rear and supports up to 9 fans, including 3 large 200mm fans for extreme airflow. And cleaning is hassle free thanks to the multiple dust filters at the bottom, top, and front.

FEATURES

• Removable top cover for easier installation and maintenance
• Dual SuperSpeed USB 3.0; The cover protects I/O area and top compartment
• Supports long VGAs up to 423mm / 16.6 inch
• Removable HDD/SSD combo cage with adjustable HDD/SSD trays
• Large slide-out dust filter for easy maintenance
• Extra cable management space (27mm); Supports one SSD behind the M/B tray

COOLING

• Supports a 240mm radiator at the top
• Supports a 200mm fan at the top
• Supports a 120mm radiator in the rear
• Supports a 240mm radiator in the front
• Supports two 120mm fans or one 180/200mm fan on the side panel (CMS-693-KKN1
• Includes a front 200mm fan for high airflow

AIRFLOW

• Top: 120/140mm fan x 2, or 200mm fan x 1 (optional)
• Front: 200mm fan x 1 (installed), or 120/140mm fan x 2 / 180mm fan x 1 (optional)
• Rear: 120mm fan x 1 (installed)
• Side: 120mm fan x 2 or 180/200mm fan x 1 (optional) – for CMS-693-KKN1
• Bottom: 120mm fan x 1 (optional)
• HDD cage: 120mm fan x 1 (optional)

MORE INFORMATION

THREE COLORS TO CHOOSE: SILVER / GREEN / WHITE

LIQUID COOLING COMPATIBILITY LIST

MODEL LIST
