Cooler Master MasterBox MB510L ATX Mid-Tower with Carbon Texture Front Panel CPU Casing
NPR 11,875.00
In stock
SKU
coolermaster-mb510l
READY, SET, GAME.
Carbon Texture, Aggressive Intakes, Edge-To-Edge Transparent Side Panel, Support for a Total of 6 Fans and Water Cooling, Graphics Card Support Up to 400mm , Multiple Trim Colors Available

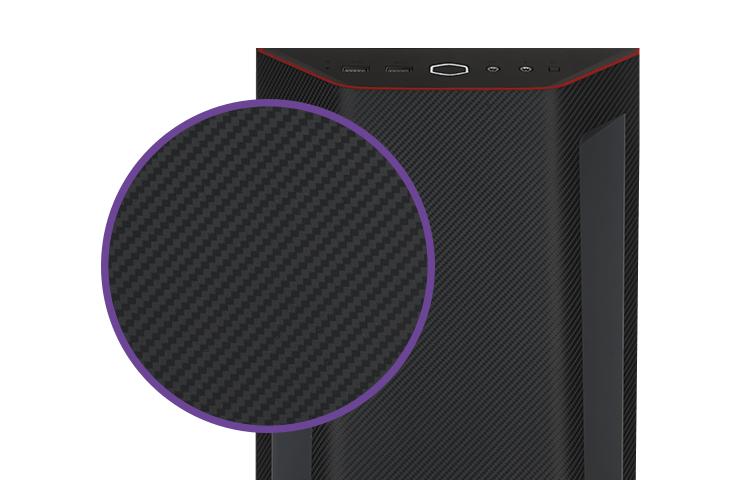

CARBON TEXTURE
Racing and motorsports act as an inspiration for the carbon texture design.
AGGRESSIVE INTAKES
Large intakes on each side of the front panel pay tribute to high performance cars.
THERMAL PERFORMANCE
Optimized airflow due to the large intakes on each side of front panel and ventilation holes on top of the case.
MAIN COMPONENTS CLEARANCE
The MB510L case supports CPU Coolers up to a height of 165mm, Graphic cards up to a length of 410mm and Power Supplies up to a length of 180mm.
| Model | MCB-B510L-KANN-S00 |
|---|---|
| Dust Filtration | Front, Bottom |
| Expansion Slots | 7 |
| Drive Bays | Combo 3.5"/2.5" Drive Bays 2 (Max. 2) / SSD Drive Bays 4 (Max. 6) |
| Product Dimensions | 52.3 x 27.6 x 56.8 cm |
| Weight | 11.68 lbs |
| Case Type | Mid Tower |
| Motherboard Form Factor | ATX, Mini-ITX, Micro-ATX |
| Casing Material | Steel |
| I/O Parts | USB 3.0 x 2, Audio In / Out |
| Side Panel | Transparent |
| Fans | Top: 120mm x 2 / 140mm x 2 Front: 120mm x 3 / 140mm x 2 (can only mount behind the front plate) Rear: 120mm x 1 |
| Liquid Cooling | Front: 120 / 140 / 240 / 280 / 360mm (75mm clearance) / Top: 120 / 240mm / Rear: 120mm |
| Clearance | CPU Cooler: 165mm / 6.49" PSU: 180mm / 7.08" GFX: 410mm / 16.10" |
| RGB Lights | N/A |
| PSU Included | N/A |
| PSU Support | Bottom mount, ATX |
| In the box | Main Unit |
| Warranty Period | 2 Year Warranty |
