Cooler Master MasterWatt 80+ Bronze 750 Watt Semi-Fanless
The Cooler Master MasterWatt Bronze 750W is a modular 80 Plus Bronze certified PSU with a semi-fanless mode. Under 15% load, the MasterWatt Bronze fan remains idle, offering zero dBA. When demand for power increases, a gradual fan curve provides measured cooling with little to no noise at any output level. DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance, the MasterWatt Bronze 750 Watt is equipped with 16 AWG PCIe cables, which reduce resistance thereby increasing efficiency.
- 750W Semi-Modular ATX Power Supply,
- Semi-Fanless up till 15% load,
- 80 PLUS Bronze certified,
- Temperature controlled 120mm fan with dustproof LDB bearing,
- DC-to-DC circuit design for stable Voltage output,
- Thicker 16AWG PCIe cables to support the latest graphics cards.
MASTERWATT 750 TUF GAMING EDITION
80 PLUS BRONZE CERTIFIED SEALED LDB FAN BEARINGS PERFORMANCE DRIVEN TOPOLOGY 16 AWG PCI-E CABLES
BUILT WITH THE TUF STUF
The 80 Plus Bronze rated MasterWatt TUF Gaming Edition PSU offers semi-fanless operation, modular cabling, thicker than standard market cables, and a 5 year warranty. While under 15% load, MasterWatt TUF Gaming Edition fans aren't spinning, thus reducing the noise, power consumption, and wear on the unit. When the fan is spinning, the Cooler Master designed LDB to fan bearing delivers low noise and a long lifespan. A gradual fan curve increases cooling based on the system's needs, keeping the noise level in check. The higher heat tolerance of the 16 AWG PCI-e cables deliver increased efficiency due to the higher current allowance.

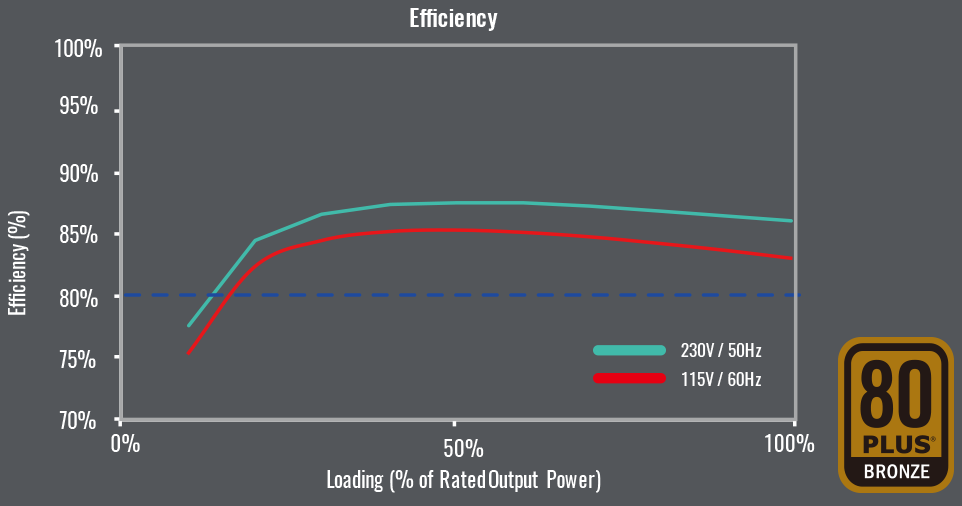

80 PLUS BRONZE CERTIFIED
This certification guarantees a typical efficiency of 85% under normal operating conditions.
SEALED LDB FAN BEARING
The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling with a longer lifespan.
SEMI-FANLESS UP TO 15% LOAD
MasterWatt TUF Gaming Edition Operates at 0dB under 15% load. Experience noise-free basic computing.
PERFORMANCE DRIVEN TOPOLOGY
The Dual Forward and DC-DC circuit design offers reliable, stable output to all your components.
5 YEAR WARRANTY
This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
| Model | MPX-7501-AMAAB |
|---|---|
| Input Voltage | 100-240 Vac |
| Input Current | 10-5 A |
| Input Frequency Range | 50-60 Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500 ms |
| Efficiency | 85% @ Typical Load |
| Protection | OCP / OVP / UVP / OPP / OTP / SCP |
| Product Dimensions | L : 140 mm B : 150 mm H : 86 mm |
| Weight | 4.47 pounds |
| Type | ATX |
| Voltage | +12 Volts DC |
| Connector | 20 Pin Molex ATX Power Connector |
| Modular | Semi-Modular |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| Fan | LDB |
| Connector | MB 24 Pin 1 CPU 12V 4+4 Pin 1 SATA 9 Peripheral 4 Pin 3 FDD Cable 4 Pin 1 PCI-e 6+2 Pin 4 |
| Certifications | 85% @ Typical Load |
| In the box | Main units, User Manual, Warranty Card. |
| Width | 150 mm |
| Height | 86 mm |
| Depth | 140 mm |
| Warranty Period | 1 Year Manufacturer Warranty. |
| Covered In Warranty | Warranty of the product is limited to manufacturing defects only. |
| Not Covered In Warranty | Warranty Does Not Cover Any External Accessories, Damage Caused To The Product Due To Improper Installation By Customer, Normal Wear And Tear. |
