Cooler Master MB500 TUF Edition CPU Casing

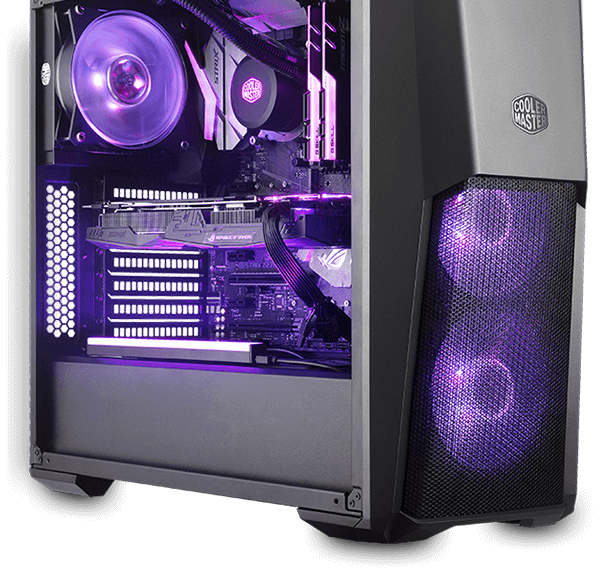

RGB LIGHTING
Use the RGB lighting to create a captivating build in your preferred color theme.
TEMPERED GLASS SIDE PANEL
Show off your build in style through the 4mm thick edge to edge tempered glass side panel.

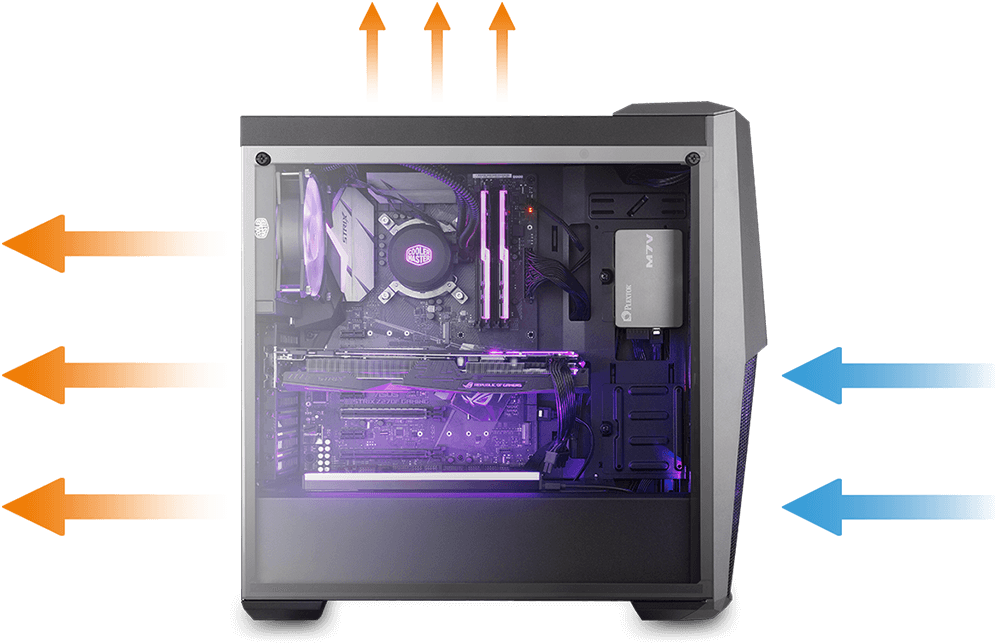

EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case./

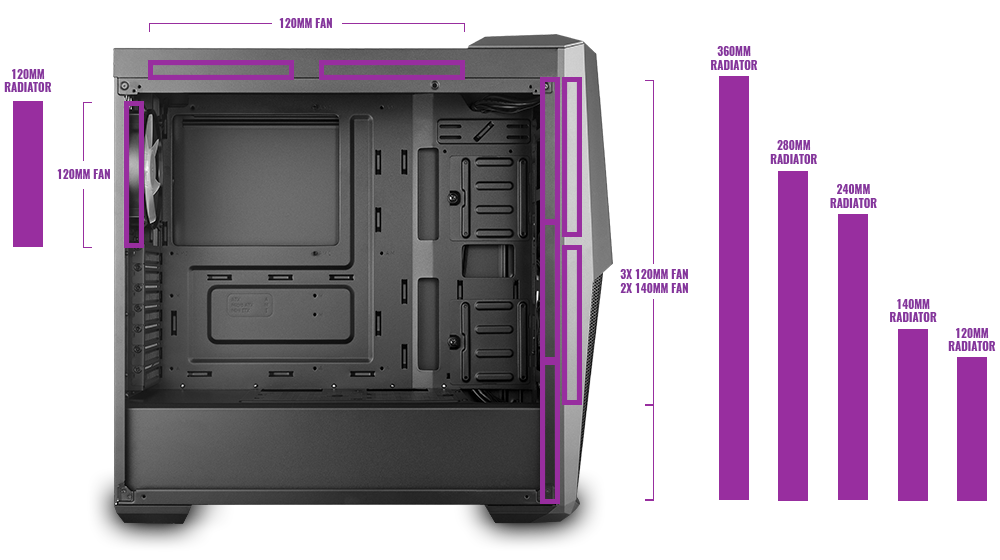

FAN AND RADIATOR SUPPORT
The front supports up to three 120mm- or two 140mm fans and up to a 360mm radiator, with a maximum thickness of 50mm without fans. The Rear supports a 120mm fan or radiator, and the top up two 120mm fans. It comes with two pre-installed 120mm RGB fans in the front and a single 120mm RGB fan in the rear. All to ensure you don't have to compromise on performance.

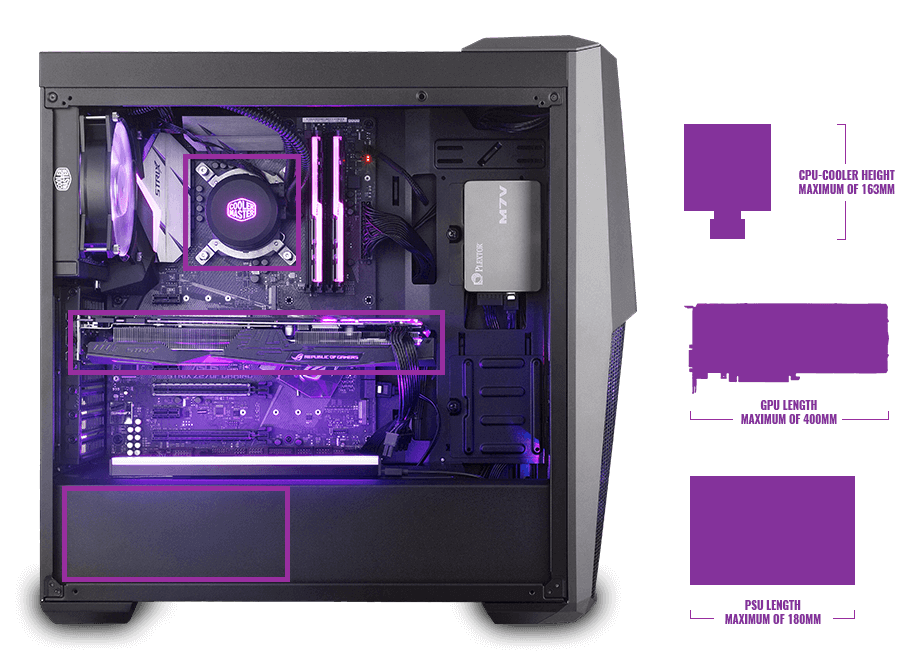

MAIN COMPONENTS CLEARANCE
The MB500 case supports CPU-Coolers up to a height of 160mm, Graphic Cards up to a length of 400mm, and Power Supplies up to a length of 180mm.
EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your gaming needs. Black coating and an included PSU cover that allows for easy, simple configurations for your gaming build. Let your configuration stand out with an all-black background.
| Model | MCB-B500D-KGNN-S00 |
|---|---|
| Dust Filtration | Front, Bottom |
| Expansion Slots | 7 |
| Drive Bays | Internal 3.5" Drive Bays 2 / Internal 2.5" Drive Bays 2 |
| Product Dimensions | 494 x 211 x 475mm |
| Weight | 6.35 |
| Case Type | Mid Tower |
| Motherboard Form Factor | ATX, Mini-ITX, Micro-ATX |
| Casing Material | SGCC + Plastic |
| I/O Parts | USB 3.0 x 2, Audio In / Out |
| Side Panel | Transparent |
| Fans | Front-120mm x 3 / 140mm x 2 Top-120mm x 2 Rear-120mm x 1 |
| Liquid Cooling | Front-120 / 140 / 240 / 280 / 360mm radiator (limited) up to 50mm thickness without fan / Rear-120mm x 1 |
| Clearance | CPU Cooler-163mm PSU-180mm GPU-400mm |
| RGB Lights | Included |
| PSU Included | N/A |
| PSU Support | Bottom mount, ATX |
| In the box | Main Unit |
| Warranty Period | 2 years warranty |
