Cooler Master Q300L CPU Casing
PATTERNED MAGNETIC DUSTFILTERS
Special pattern on the dust filter creates a unique outlook for the chassis.
MODULAR I/O PANEL
The I/O panel can be adjusted to six different locations. On both side of the body you can install the I/O panel at the front, top or bottom
MULTIPLE POSITIONING OPTIONS
The case can be put in vertical or horizontal position.

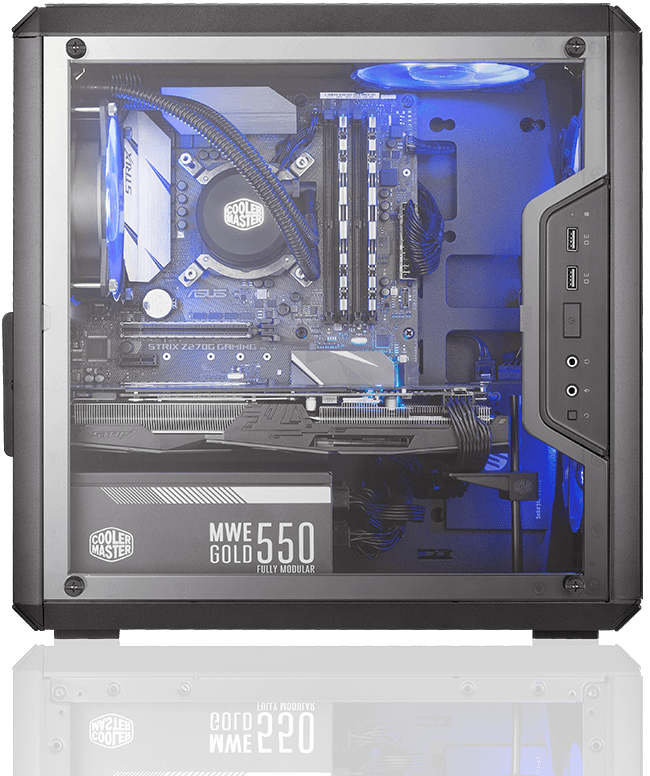

EDGE-TO-EDGE SIDE PANEL
Show off your build through the full size transparent side panel.
CLEAN ROUTING SPACE
Behind the motherboard tray, 28mm of space is offered for cable management.
EXCELLENT THERMAL PERFORMANCE
The open design of the perforated front, top and bottom guarantees excellent thermal performance.
FAN AND RADIATOR SUPPORT
The front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don't have to compromise on performance.
MAIN COMPONENTS CLEARANCE
The MasterBox Q300L case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm.
| Model | MCB-Q300L-KANN-S00 |
|---|---|
| Dust Filtration | Bottom |
| Expansion Slots | 4 |
| Drive Bays | 3.5" HDD Drive Bays-1 / 2.5" SSD Drive Bays-2 |
| Product Dimensions | W : 387 mm D : 230 mm H : 381 mm |
| Weight | 8.16 lbs |
| Case Type | Mini Tower |
| Motherboard Form Factor | Mini-ITX, Micro-ATX |
| Casing Material | Steel |
| I/O Parts | USB 3.0 x 2, Audio In / Out |
| Side Panel | Window Panel |
| Fans | Front - 2 x 120mm / 2 x 140mm fan Rear: 1 x 120mm fan (Pre-installed) Top: 2 x 120mm fan Bottom: 1 x 120mm fan |
| Liquid Cooling | Front - Up to 240mm / Rear - Up to 120mm |
| Clearance | Clearances - CPU Cooler 159mm Clearances - PSU 160mm Clearances - GFX 360mm |
| RGB Lights | N/A |
| PSU Included | N/A |
| PSU Support | Bottom mount, ATX PS2 |
| In the box | Main Unit, User Manual, Warranty Card. |
| Width | 387 mm |
| Height | 381 mm |
| Depth | 230 mm |
| Warranty Period | 2 Year Manufacturer Warranty. |
