Hikvision ezGuard C3W Full HD Outdoor Wi-Fi Camera CS-CV310-A0-1B2WFR
C3W
Sound and Light, Dual Protection
The C3W (ezGuard), a Full HD wall-mounted outdoor Wi-Fi camera, uses a built-in strobe light and alarm for deterrence, while also offering two-way talk and durability in any type of weather.
- 720p/1080p Video
- Two-Way Audio
- Supports 2.4GHz Wi-Fi
- Infrared Night Vision
- IP66 Dust and Water Protection
- Active Defense
- Supports MicroSD Card (Upto 128 GB)
Your Most Vigilant Guard
Want to keep an close eye on your home from afar? Leave the C3W (ezGuard) in charge to notify you when you have visitors. If you know them, talk to them, if not, use the siren to scare them away.
Active Light and Sound Alarms for Enhanced Defense
Upon detection, the C3W (ezGuard) activates a loud siren and strobe light to scare off intruders. The siren can reach up to 100 dB strong enough to act as a deterrent.
Two-Way Talk with HiFi Quality
Not every outdoor security camera supports two-way audio. The C3W (ezGuard) comes with a built-in microphone and HiFi quality speaker for enhanced two-way talk.
See Everything with 30m Night Vision
The integration of efficient infrared lighting, an anti-reflection panel and ICR infrared filter enables excellent night vision up to 30 meters.
External Dual Wi-Fi Antennas
Featuring powerful antennas, the C3W (ezGuard) delivers long-range transmission with strong penetration and anti-interference capabilities.
Designed for All Weather
The IP66-certified C3W (ezGuard) is a reliable and durable camera that can protect you in all types of weather: rain, sunshine or even snow.
360° Swivel and Base
With the 360° swivel and base, the C3W (ezGuard) supports both ceiling and wall-mounted installations to meet your security needs.
Multiple Storage Options
With multiple storage options, you can choose where to save your recordings. The cameras can even save to all three locations at the same time for added backup in case a camera is damaged or your network crashes.
- Supports MicroSD Card
- Encrypted Cloud Storage
- EZVIZ NVR

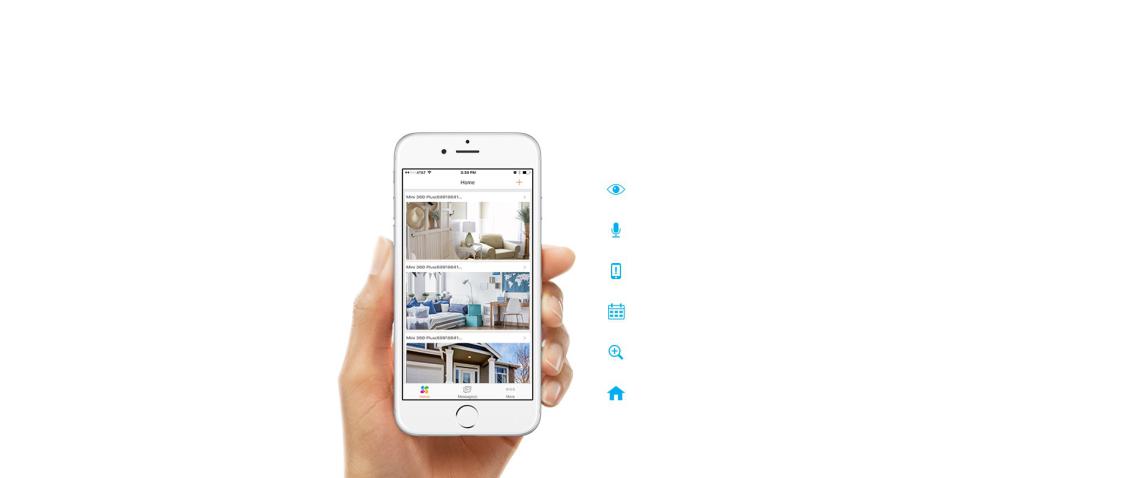

Security at Your Fingertips
With EZVIZ app or EZVIZ Studio, you can protect, capture, save and share what’s valuable to you.
- Live View
- Real-Time Talk
- Instant Alerts
- Video History
- Up to 8x Zoom
- Smart Home Enabled
| Brand | Hikvision |
|---|---|
| Model | CS-CV310-A0-1B2WFR |
| Operating Conditions | -30°C ~ 60°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V±10% |
| Power Consumption and Current | Max. 6W |
| IR Range | Max. 30meters |
| Protection Level | IP66 |
| Product Dimensions | 150mm x 85mm x 72mm |
| Weight | 326g |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Min. Illumination | 0.02 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm@ F2.2, Horizontal angle: 103° Diagonal angle: 118° 4mm@ F2.0, Horizontal angle: 87° Diagonal angle: 104° 6mm@ F2.0, Horizontal angle: 54° Diagonal angle: 62° |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| Digital Noise Reduction | 3D DNR (Digital Noise Reduction) |
| WDR | Digital WDR |
| Format (Megapixel | 2 MP |
| Video Compression | H.264 |
| Video Bit Rate | HD, Balanced and Smooth. Adaptive bit rate. |
| Max. Resolution | 1920×1080 |
| Image Settings | Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio) |
| BLC | Support |
| Network Storage | Support Micro SD card (Max. 128G) |
| Protocols | EZVIZ cloud proprietary protocol |
| General Functions | Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark |
| Alarm Trigger | Intelligent motion detection |
| Communication Interface | RJ45 10M/100M self-adaptive Ethernet port*1 |
| Standard | IEEE802.11 b/g/n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| In the box | Main Unit Power Cable AC Adapter |
| Warranty Period | 1 Year Warranty |
| Not Covered In Warranty | Adapter |
