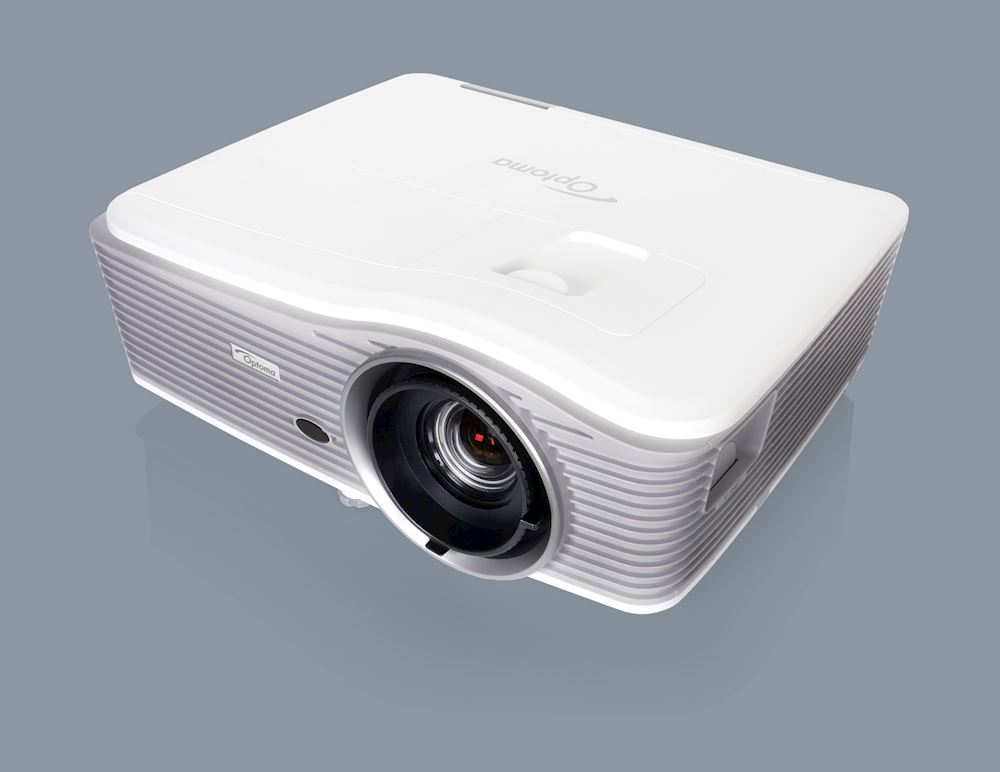

Optoma Projector Expert W515
A powerful performer
Designed for professional installation environments, the powerful high-specification W515 projector boasts a brightness of 6000 lumens and features multiple digital connection options, with two HDMI inputs and DisplayPort. For more complex installations, this projector is equipped with a large zoom range, lens shift and a built-in geometric adjustment feature - ideal for image stacking, uneven walls or where a projector placement is awkward and needs to be installed at an angle.
Four-corner adjustment
Individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
Brightness matching
A valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine tuned to give the same brightness levels; important, especially when side by side.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
MHL
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.
USB-Power
Use the USB-Power to power an HDMI dongle
Wired remote
The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
- RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
- AMX Compatibility Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
- LAN Control Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.
- Schedule the projectors to power on/off.
- Control and alter the projector settings using the simple web browser.
- Emergency text broadcast capabilities for urgent or important announcements
- Automatically receive email updates for lamp maintenance.
PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
AV mute
Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used
Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions. 24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.
Customise your projector
Have your projector in any colour. Chose from any RAL colour. Perfect for bespoke installations. *Contact us for more information"
| Brand | Optoma |
|---|---|
| Model | W515 |
| Maximum Brightness | 6,000 lumens |
| Light Source | Lamp |
| Projection Ratio | 4:3,16:9 |
| Minimum Projection Distance | 1.3m |
| Product Dimensions | 424 x 344 x 160 |
| Weight | 5.9 kg |
| Type | WXGA |
| Lamp Life | 4000 hrs - 5999 hrs |
| Device Chipset | DLP |
| Maximum Brightness | 3000 lm and Above |
| Graphic Mode | WXGA |
| Vertical Scanning Frequency | 24 ~ 85(120 for 3D)Hz |
| Horizontal Scanning Frequency | 15.375 ~ 91.146Khz |
| Zoom Ratio | 1.8 |
| Maximum Diagonal Projection Size | 0.63m ~ 7.62m (24.7" ~ 300") (diagonal) |
| Contrast Ratio | 10,000:1 |
| Number of Speakers | 2 |
| Output Per Speaker | 10W |
| 3D Support | Yes |
| Number of VGA Ports | 1 |
| VGA In | 1 x VGA (YPbPr/RGB) /1 x VGA (YPbPr/RGB/wireless) |
| HDMI Ports | 2 |
| HDMI Version | 1.4a 3D support + MHL |
| RS 232 Connectors | 1 x RS232 |
| Number of RJ-45 Ethernet Port | Yes |
| USB Version | 1.5A |
| USB Ports | 1 x USB-A power 1.5A, 1 x USB-B mouse/service |
| S Video | 1 x S-Video |
| RCA Composite Audio In | 1 x Audio RCA L&R |
| Audio Out | 1 x Audio 3.5mm |
| Other Connectors | Input :1 x Mic 3.5mm Input: 1 x Wired remote |
| Power Supply | 100V ~ 240V ± 10%, 50-60Hz |
| Standby Power Consumption | 0.5W |
| Power Consumption | 340W-425W |
| Number of Batteries | 2 |
| Remote Control | Yes |
| Number of OSD Language | 25 languages: Arabic,Czech,Danish,Dutch,English,Farsi,Finnish,French,German,Greek,Hungarian,Indonesian,Italian,Japanese,Norwegian,Polish,Portuguese,Romanian,Russian,Chinese (simplified),Spanish,Swedish,Chinese (traditional),Turkish,Vietnamese |
| Keystone Adjustment | Yes |
| Controls | Backlit ProAV remote |
| Minimum Focal Length | 17.63 |
| Security Slot | Yes |
| Minimum Aperture | 1280 |
| Maximum Aperture | 800 |
| Normal Noise Level | 28dB |
| Maximum Focal Length | 31.36 |
| Humidity | Humidity 85% |
| In the box | AC power cord Remote control, 2x AAA batteries Basic user manual |
| Warranty Period | 1 Year Standard or 1000 Hours on lamp, 2 Years on the Projector |
