Transcend CM80S SSD case 3.0

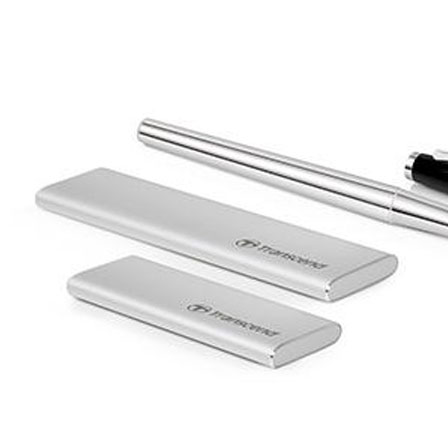

Sleek, pocketable design
Transcend's M.2 SSD enclosure features a lightweight aluminum construction, making it both portable and durable while you are on the move. A LED indicator lets you know when the drive is in use.

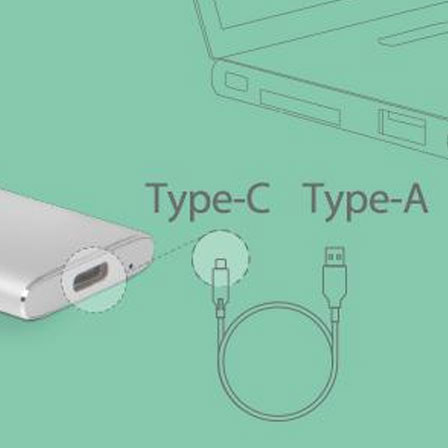

USB Type-A and Type-C supported
To accommodate devices with different USB ports, the M.2 SSD enclosure is engineered to convert to a USB Type-C port, offering flexibility of being used on different platforms with either USB Type-A or Type-C port. Note: A standard USB Type-A cable is included. Users will need to provide their own adapter or compatible cable to attach the M.2 SSD enclosure to USB Type-C devices.

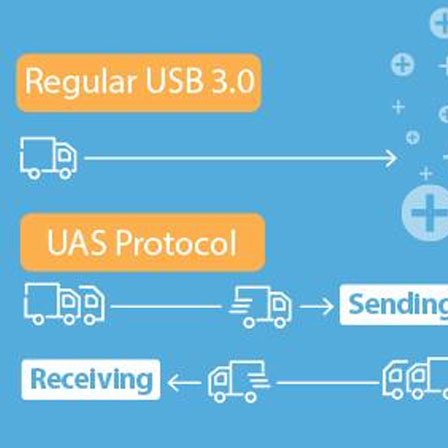

Enhanced performance with UASP
The M.2 SSD enclosure uses the USB 3.1 Gen 1 interface incorporated with UASP (USB Attached SCSI Protocol) that makes transfer speeds faster than with a sole USB 3.0 interface when used with a UASP-enabled host computer.

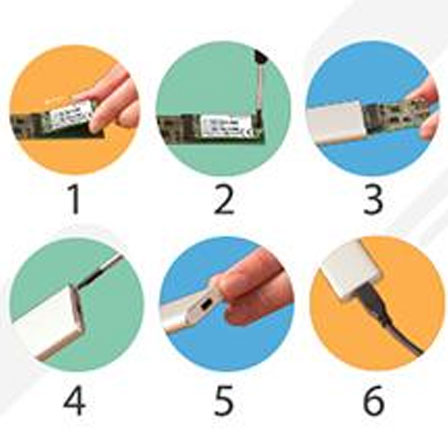

Quick and easy installation
(1) Insert an M.2 SSD into the connector on the adapter. (2) Screw the M.2 SSD onto the adapter. (3) Place the M.2 SSD assembly into the enclosure with the USB Type-C connector facing outward. (4) Screw the metal plate to the front of the enclosure. (5) Attach the aluminum sticker to the front panel. Do not obstruct the LED hole. (6) Connect the M.2 SSD enclosure to your computer. Note: M.2 SSD sold separately. The M.2 SSD Enclosure Kit is not compatible with PCI-Express M.2 SSDs.
Two form factors
To be compatible with the most common M.2 SATA solid state drives, Transcend offers two enclosures in different form factors for multiple drive heights. The CM42 enclosure is for type 2242 only, whereas the CM80 can mount type 2242, 2260, and 2280.

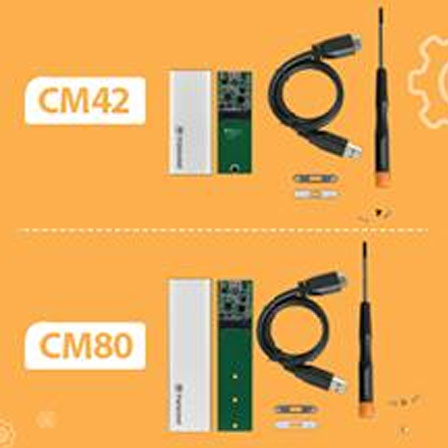

All-inclusive package
The package includes a M.2 SSD enclosure (CM42 or CM80), a M.2 adapter, a Type-C to Type-A USB cable (45cm), a metal plate, an aluminum sticker, a screwdriver, and three mounting screws. CM80 has one additional copper nut included in the package.

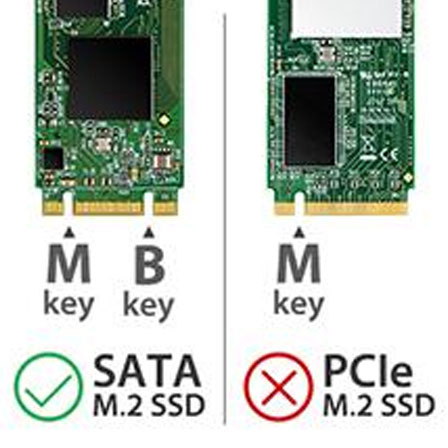

For M.2 SATA SSDs
Transcend’s M.2 SSD enclosure kit is designed specifically to accommodate M.2 SATA SSDs with a B+M key. It does not support PCIe M.2 SSDs.
| Brand | Transcend |
|---|---|
| Model | CM80S |
| Connection Interface | USB 3.0 |
| USB Type | USB Type-A / Type-C SSD Case |
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) |
| Operating Voltage | 3.3V±5% (Lightning) 5V±5% (USB 3.1 Gen 1) |
| Supported OS | Microsoft Windows 7 Microsoft Windows 8 Microsoft Windows 10 Mac OS 9.0 or later Linux Kernel 2.4.2 or later |
| Weight | 1.44 ounce |
| In the box | Main Unit SSD Case |
| Width | 69 |
| Height | 17 |
| Depth | 7.3 |
| Warranty Period | 1 year warranty |
