Ubiquiti 5 GHz Carrier Radio with LTU Technology AF-5XHD
The AF5XHD is also compatible with a number of existing Ubiquiti(R) antennas for the 5 GHz band, including airFiber X antennas and certain RocketDish(TM) antennas. Pair the AF5XHD with a compatible Ubiquiti antenna for a complete 5 GHz Point-to-Point (PtP) solution.
• The new standard for WISP Backhaul Performance,
• 5GHz Carrier Radio with LTU Technology,
• Up to 1Gbps+ Real Throughput, 2 Million+ Packets per second, 4096QAM Modulation,Proprietary RF Filtering,
• Up to 100+ km Range,
• Full-Band Certification including DFS,
• Ubiquiti’s LTUst Custom Silicon,
• Dual Redundant Gigabit Ethernet ports with POE.

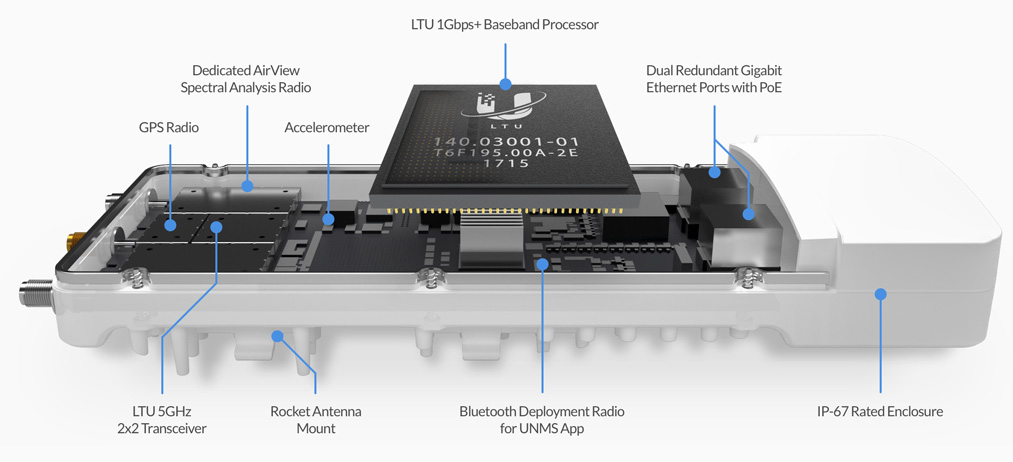

Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.
Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.
Industry Leading Complete Software Suite

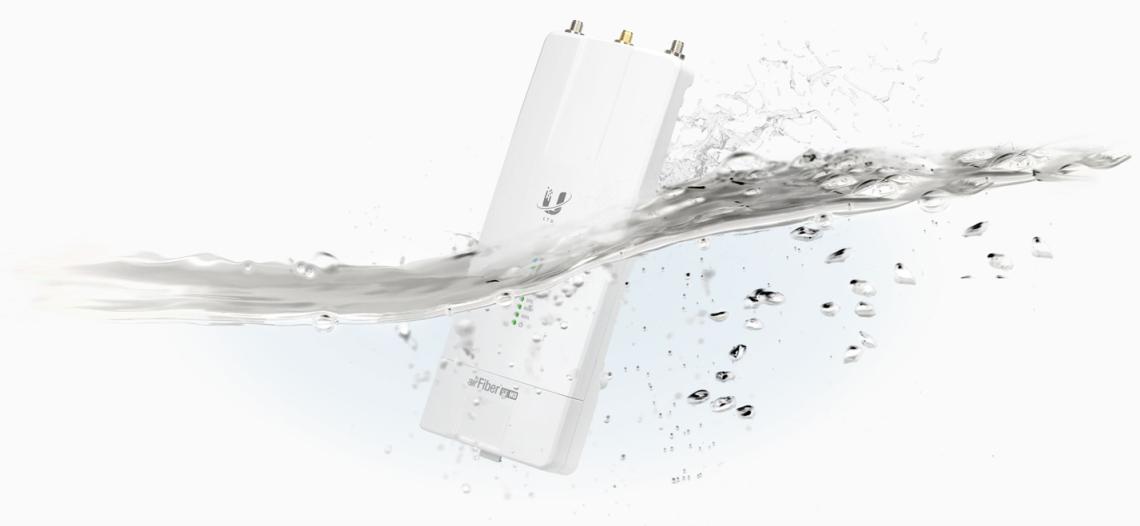

IP-67 Durability
airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.
| Brand | Ubiquiti |
|---|---|
| Model | Ubiquiti-AF-5XHD |
| Type | Wireless Routers Without Modem |
| Frequency | 4.8 - 6.2 GHz |
| Power Supply | 24V, 1A Gigabit PoE Adapter |
| Other Features | • The new standard for WISP Backhaul Performance, • 5GHz Carrier Radio with LTU Technology, • Up to 1Gbps+ Real Throughput, 2 Million+ Packets per second, 4096QAM Modulation,Proprietary RF Filtering, • Up to 100+ km Range, • Full-Band Certification including DFS, • Ubiquiti’s LTUst Custom Silicon, • Dual Redundant Gigabit Ethernet ports with POE. |
| Product Dimensions | H : 224 mm, W : 82 mm, D : 48 mm, |
| Weight | 12.3 oz |
| Operating Humidity | 5 to 95% Noncondensing |
| Temperature | 40 to 55 C |
| Antenna | External |
| In the box | Main Units, Warranty Card, User Manual. |
| Width | 82 mm |
| Height | 224 mm |
| Depth | 48 mm |
| Warranty Period | 1 Year Manufacturer Warranty. |
