Ubiquiti Outdoor Mimo Nanostation Loco M2
Featuring a panel antenna and dual-polarity performance, the NanoStation M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
- AP mode, client or WDS,
- Traffic shaping,
- QoS,
- Between WAN and LAN routing and transparent bridge with or without NAT,
- Signal strength, which is reported by the onboard LED indicator,
- Output power up to 23 dBm,
- In bridge mode and WDS device supports transparent transmission IPv6.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Powerful airOS Features
Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

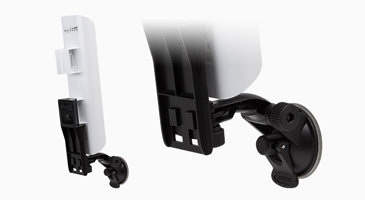

Window/Wall Mounting Kit
Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
Wall/Pole Mounting Kit
The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStationM. 90° tilt adjustment allows for easy positioning.
| Brand | Ubiquiti |
|---|---|
| Model | Ubiquiti Loco M2 |
| Type | Wireless Routers Without Modem |
| Controls | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1 LAN x 1 Wi-Fi x 1 WAN x 1 |
| Frequency | 2400 - 2486 MHz |
| Power Supply | 24 V, 0,5 A |
| Other Features | Processor Specs: Atheros MIPS 24KC, 400MHz, Memory Information: 32MB SDRAM, 8MB Flash, Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, Power Supply: 24V, 0.5A POE, 150+ Mbps real outdoor throughput and up to 15km+ range. |
| Product Dimensions | H : 163 mm, D : 31 mm, W : 80 mm, |
| Weight | 0.18 kg |
| Operating Humidity | 5 to 95% condensing |
| Temperature | 30~80C |
| Standard Features | 802.11b/g/n |
| Other Features | Wireless approvals: FCC Part 15.247, IC RS210, CE |
| Antenna | Internal |
| No. Of USB Ports | 1 |
| In the box | Main Units, Warrany Card, User Manual. |
| Width | 80 mm |
| Height | 163 mm |
| Depth | 31 mm |
| Warranty Period | 1 Year Manufacturer Warranty. |
