Ubiquiti RocketDish 4.9-5GHz 30dBi Dual-Pol Parabolic Antenna (RP-SMA cables included) RD-5G30
RD-5G30 is a Ubiquiti Networks RocketDish parabolic dish antenna. Designed to work with Rocket M5 radios, it operates on 5GHz spectrum at 30dBi gain.The Ubiquiti RocketDish Antenna has been designed to seamlessly work together with the Ubiquiti Rocket M5 or MikroTik UBTik™ for an instant long range powerful PtP Link. Installing the Rocket M5 or the MikroTik UBTik™ onto the RocketDish Antenna requires no special tools, you simply snap it into place with the mounts provided.
• 5GHz, 30dBi.
• airMAX® 2×2 PtP Bridge Dish Antenna.

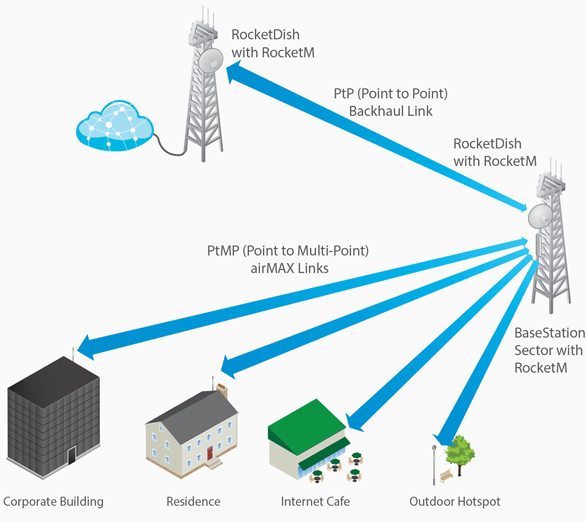

• Pair the RocketDish™ with a Rocket™M BaseStation for Point-to-Point (PtP) bridging and network backhauls.
• Powerful Performance for Long-Range Links.
• Robust Design and Construction for outdoor use.
• Seamless Integration with Rocket Radios.

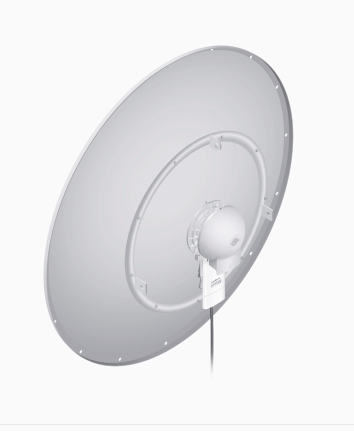

Breakthrough Design and Performance
The powerful airMAX® RocketDish™ Antennas feature carrier-class construction and 2x2, dual-polarity performance.
Installing the RocketDish™ Antenna
Industrial-Strength Construction
airMAX® Antennas are designed with robust mechanical design for outdoor application use

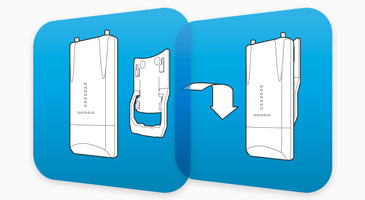

Plug and Play Integration
Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
| Brand | Ubiquiti |
|---|---|
| Model | Ubiquiti-RD-5G30 |
| Frequency | 4.9-5.90 GHz |
| Other Features | • 5GHz, 30dBi. • airMAX® 2×2 PtP Bridge Dish Antenna. • Pair the RocketDish™ with a Rocket™M BaseStation for Point-to-Point (PtP) bridging and network backhauls. • Powerful Performance for Long-Range Links. • Robust Design and Construction for outdoor use. • Seamless Integration with Rocket Radios. |
| Product Dimensions | W : 88 mm, D : 40 mm, H : 230 mm. |
| Weight | 7.4 kg |
| Operating Humidity | 5% to 95% Noncondensing |
| Temperature | 40 to 80° C (-40 to 176° F) |
| Antenna | External |
| In the box | Main Units, Warranty Card, User Manual. |
| Width | 88 mm |
| Height | 230 mm |
| Depth | 40 mm |
| Warranty Period | 1 Year Manufacturer Warranty. |
