Xiaomi MI house sweeping robots

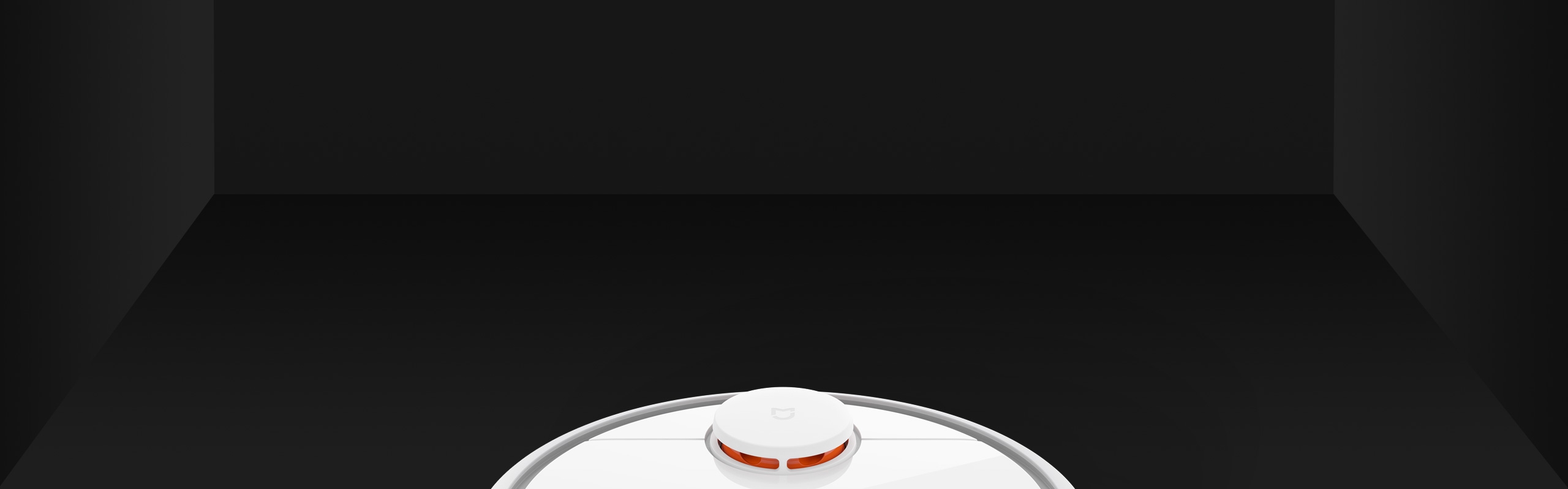

A pair of bright eyes, let me accurately detect the interior space
LDS laser ranging sensor is my eyes, it will be 5 × 360 ° / sec speed scanning the room, access to distance information. When the laser is projected onto the obstacle, it will be in my. The eyes of the formation of light spots. At the same time, the image sensor calculates the center distance of the laser ranging sensor according to the pixel number of the spot.
Touch the perception, love home is my responsibility
At work, when my shell gently hit the obstacle, it will occur slightly deformed, and oppression of the outer two buttons, the collision sensor through the button to determine whether the state is in oppression, And the position of the collision on the left, right or middle, so as to protect the items at home from being damaged.
Ultrasonic induction, so I can see the transparent glass
My body has an ultrasound sensor that mimics bats ultrasound, the entire sensor is composed of two parts that are responsible for transmitting ultrasound and receiving ultrasound. The sound waves are propagating in the air. The speed is 340m / s, according to the time difference between transmission and reception can be calculated and get my distance from the obstacle, so as to avoid collision, transparent objects can also correctly induction ahead of the slowdown.

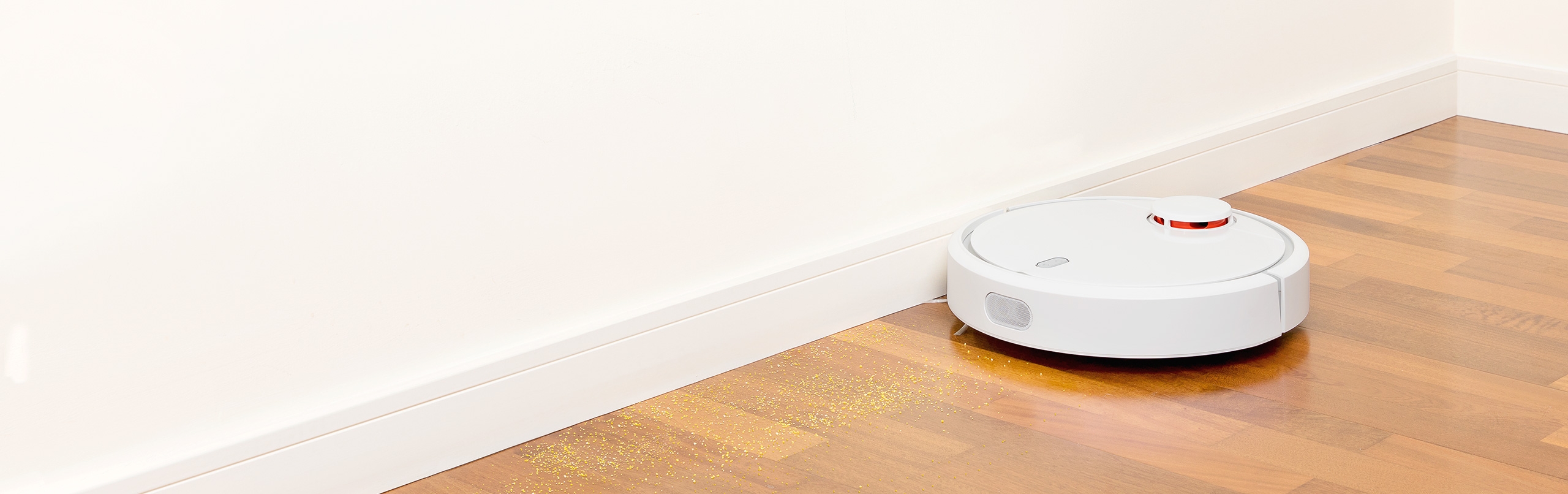

Sweeping along the wall, Even the walls are not let off
The most troublesome problem in the cleaning process is that the cracks in the wall are often not clean, I am in the process of the wall along the wall, Keep the distance of about 10mm, at the same time with the edge of the brush high-speed rotation can be completely the walls of the gap clean dust, do not miss home every inch of space.
Balance and direction of the gyroscope, as well as accelerometer
The triaxial gyroscope on my body can detect the angle change in the yaw / pitch / roll direction to determine the machine orientation and the triaxial accelerometer Judge the speed of the three axes of the X / Y / Z robot, which is used to determine whether the machine is tilted or with or without a sudden collision.

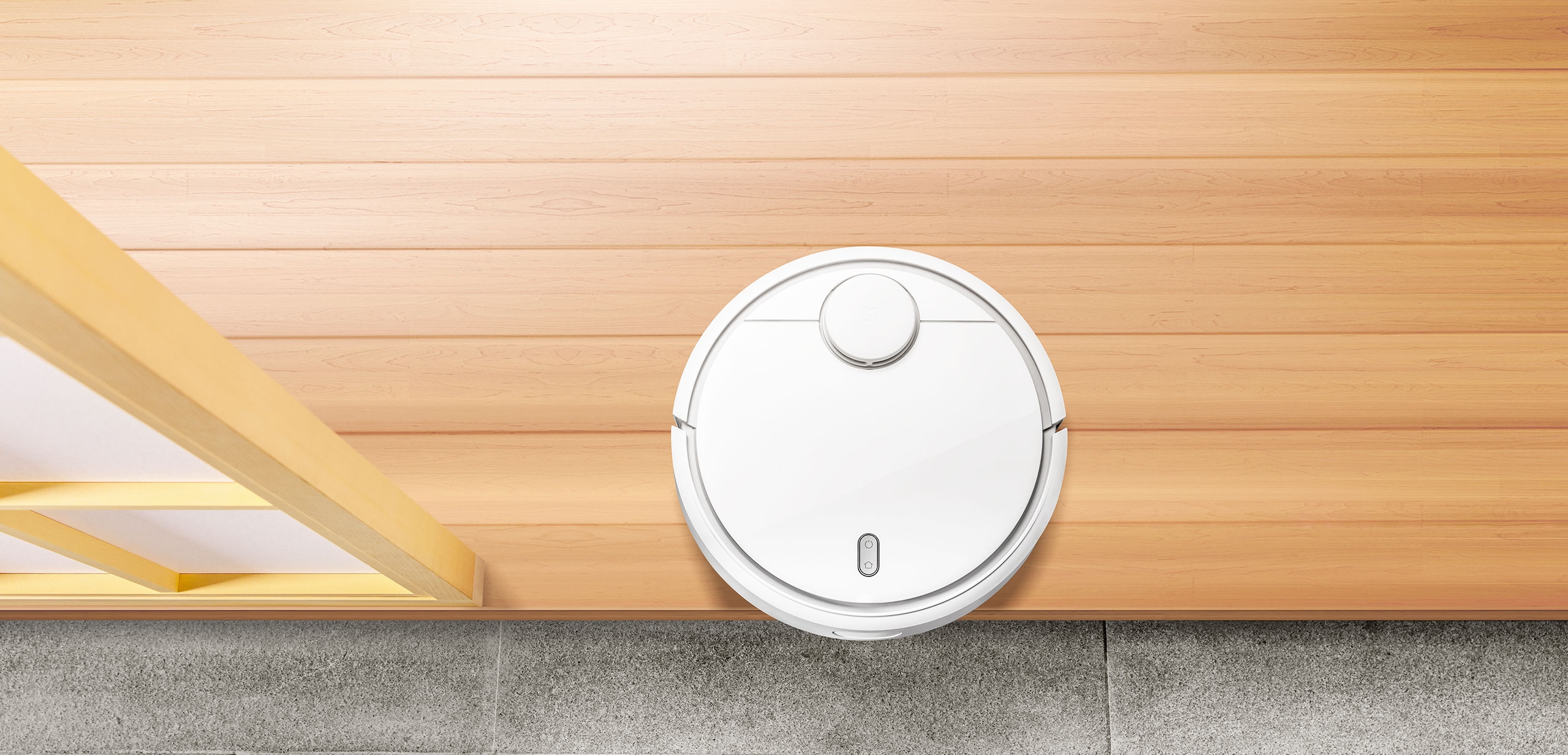

With the cliff detection, the protection I will not fall
My body has four cliff sensors to measure the height of the steps, each sensor consists of an infrared emission tube and infrared receiver tube, the sensor installed in my bottom, infrared launch tube every other. The time to send infrared rays to the ground, if a long time to return or no return, then my chassis and the distance from the ground, so you can avoid my fall.

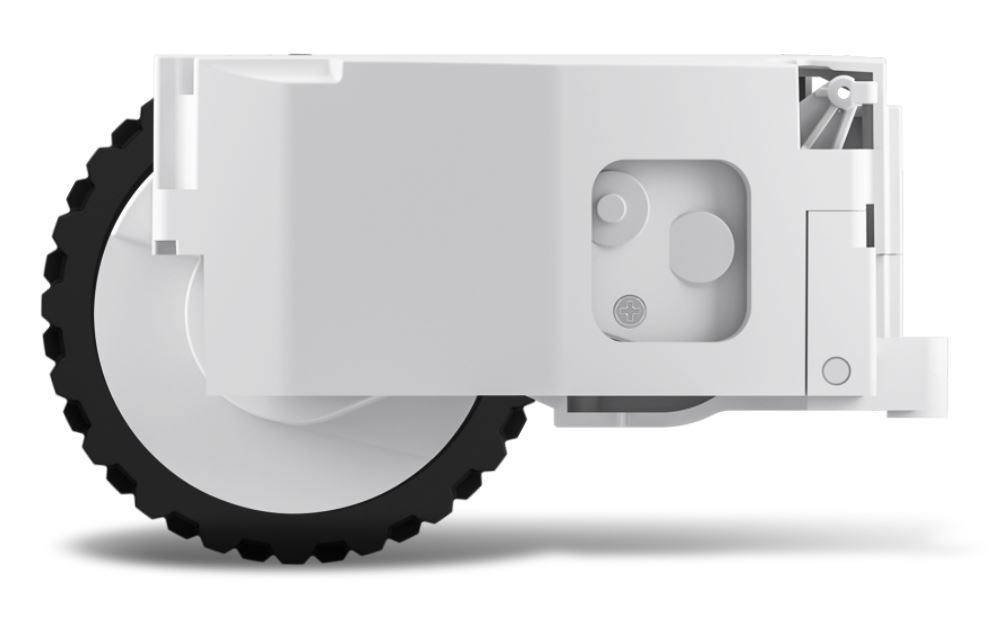

When I leave the ground, stop working immediately
I have a drop sensor that can detect whether the wheel group is being pressed to determine the current machine. Whether the normal operation, when the wheels off the ground, I will immediately stop working, greatly improved the handling. The process of security.
My every step, odometer will be recorded
My mileage is similar to the mileage of the car, multiplied by the number of revolutions of the wheel. The circumference of the wheel, so as to calculate the mileage of my work.
Filter in place detection, intimate reminder
Meter home sweeping robots alone filter in place detection, through the Hall magnetic sensor, whether the user is Forget to install the dust box or filter, can correctly detect, to avoid the user forgot to install the dust box or Filter fan damage.

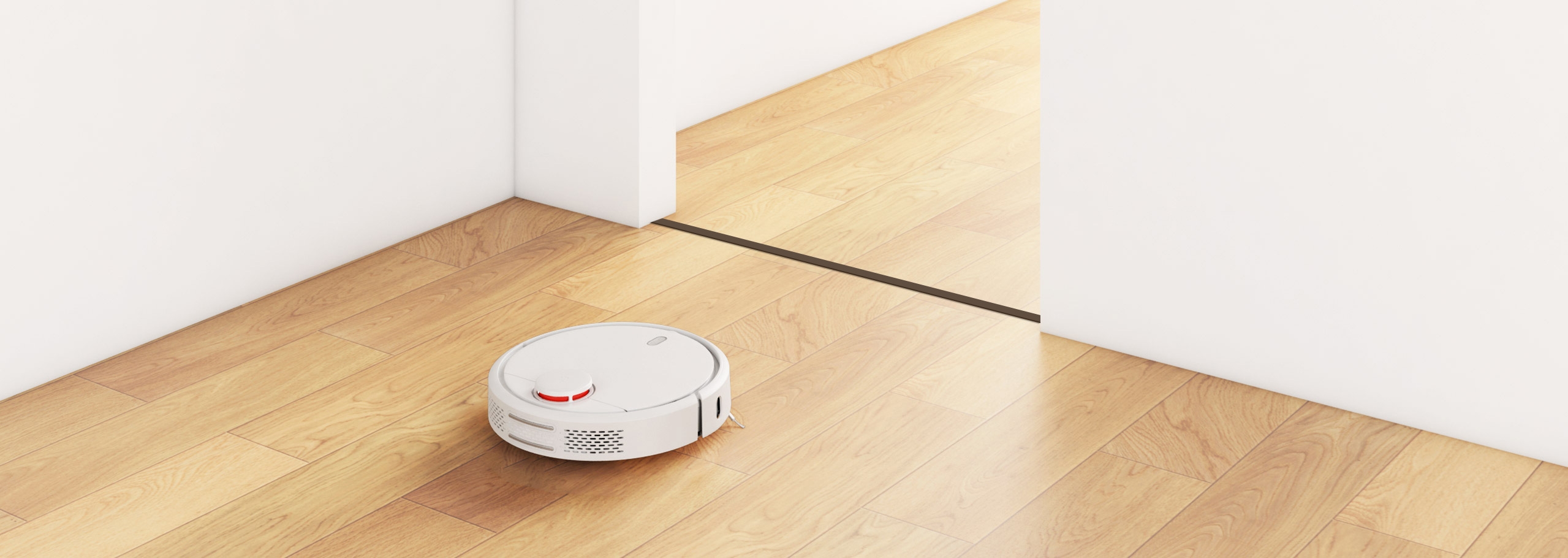

Virtual wall, safer protection barrier
With the electronic compass sensor, I will be through the magnetic field sensor, accurate identification of virtual walls. When I encounter virtual wall, will take the initiative to avoid, not unauthorized access to the virtual wall isolation area area. In the bathroom with water, may be stuck in my place, the use of virtual walls to separate From the protection of the smooth completion of cleaning.

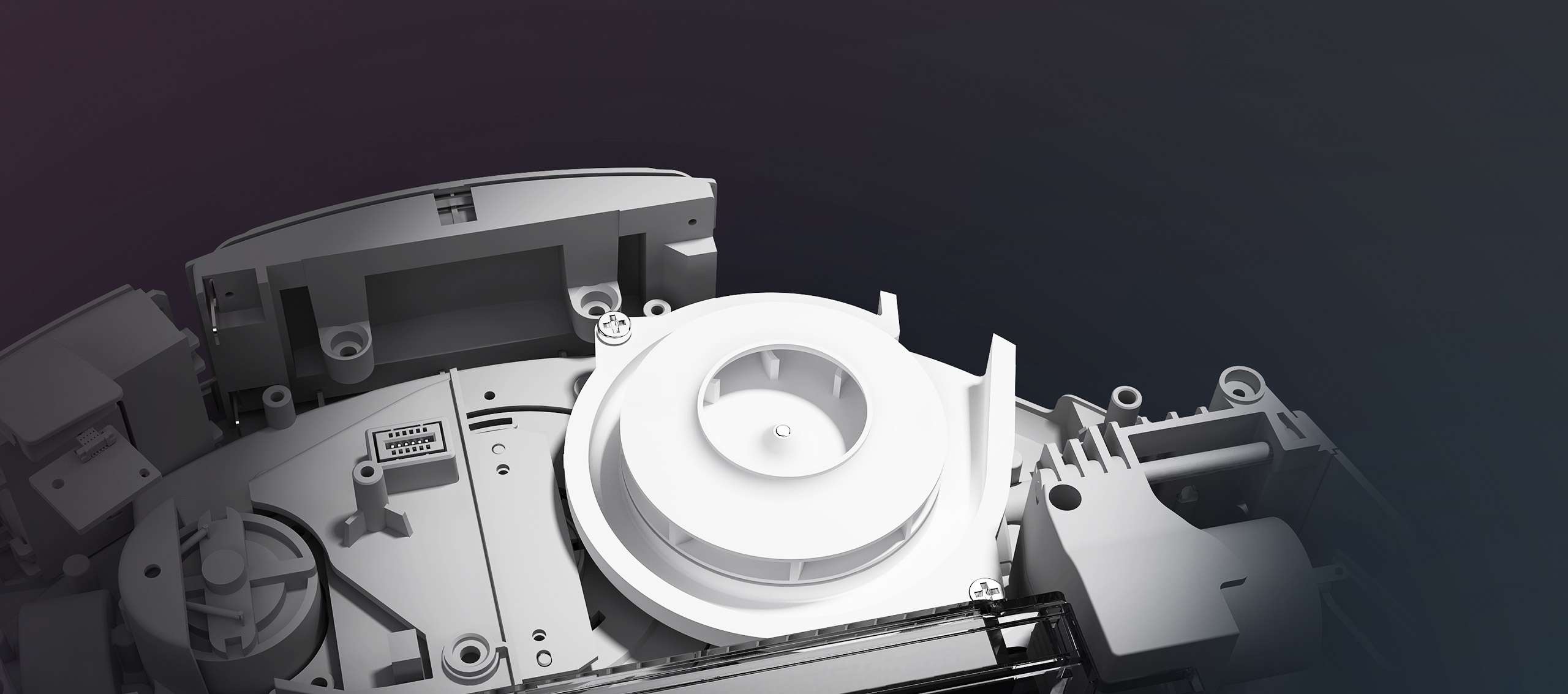

Accurate perception of fan speed
Fan speed sensor through the pulse detection fan speed, can accurately know the fan speed, thus forming a record of fan speed.

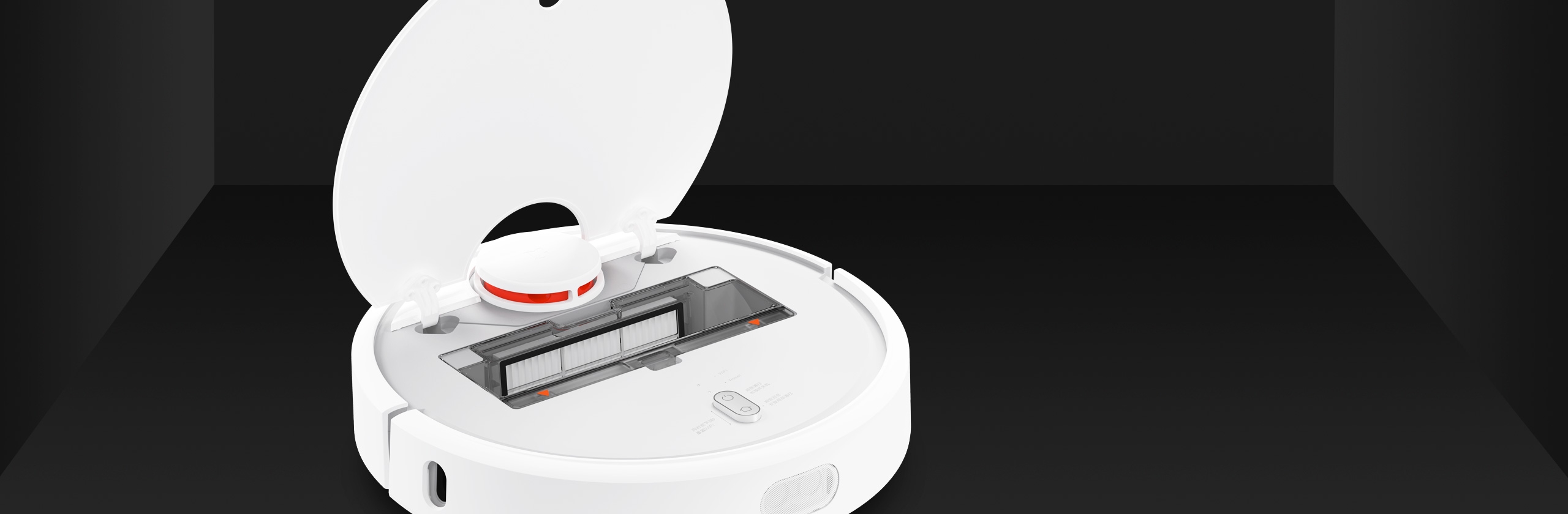

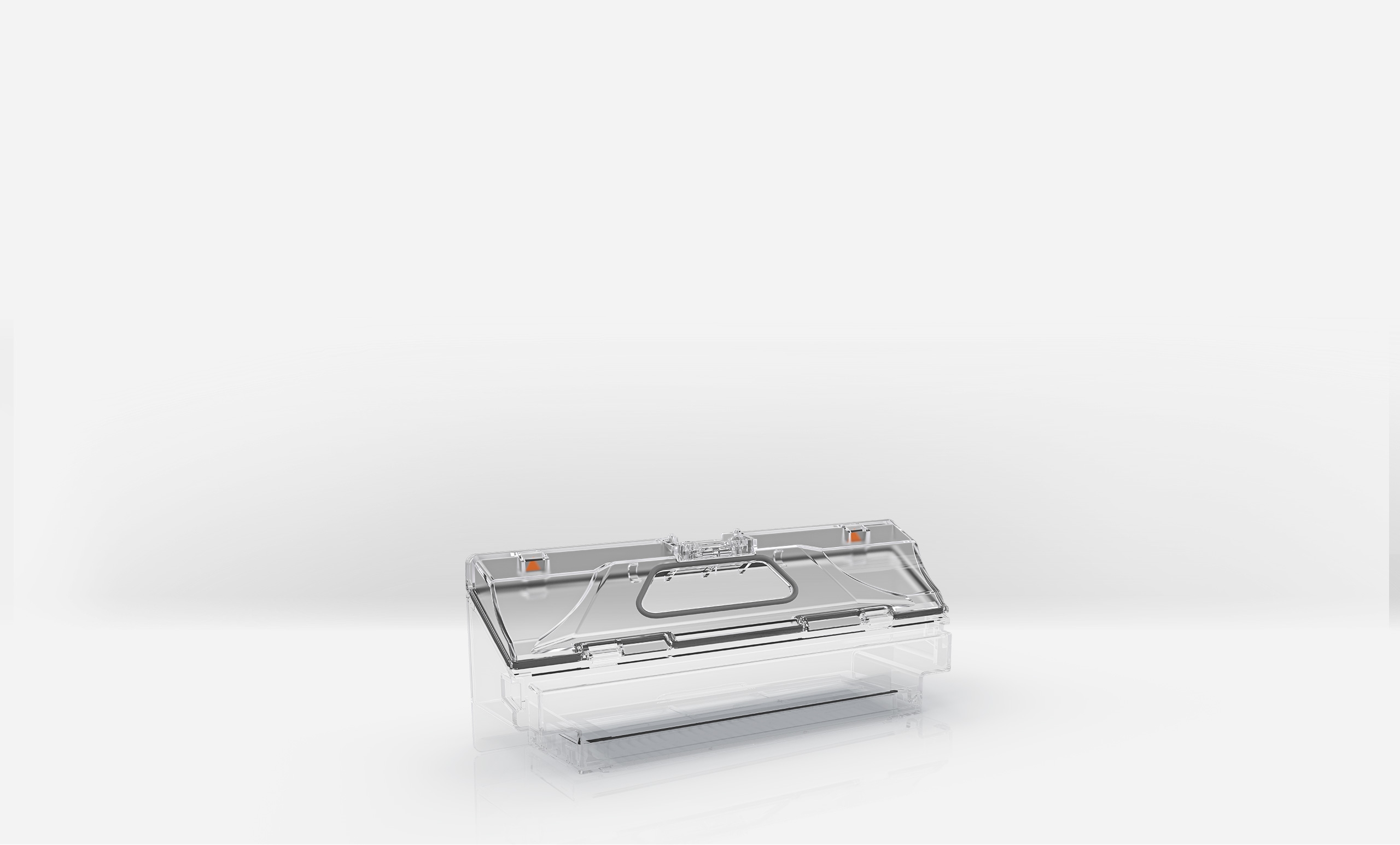

Sealed dust box, to love you clean you
FIP sealed with the way, so that my long-term use of the dust box will not leak dust, 420ml of large capacity to meet the basic needs of the basic household cleaning. The front opening is not dirty hands. Design, and integration of large area E11 grade filter, filter dirt while blowing clean air. Using a separate dust box design, with a filter is not in place detection, to avoid the user forget. The installation of the filter causes the fan to be damaged.
Horn-shaped suction, cleaning more efficient
I use the hood of the hood design, this design can ensure that the local high negative pressure, which effectively enhance the fan's dust collection rate.
| Brand | Xiaomi |
|---|---|
| Model | MI house sweeping robot |
| Type | Robot Vacuum Cleaner |
| Filter | HEPA filter |
| Motor & Suction Power | 1800pa |
| Power Requirement | 100 - 240V, 2.2A |
| Power Consumption | 55W |
| Dust Collecting Features | capacity: 420ml |
| Other Power Features | Battery Type: Li-ion Battery Capacity: 5200mAh Overcharge protection Over-discharge protection Temperature protection Short circuit protection Overcurrent protection Secondary overpressure |
| Other Convenience Features | LDS Laser range finder sensor Multi-sensor co-operation Along the wall sensor Dust box detection sensor Collision sensor Ultrasonic radar sensor Electronic compass sensor Gyroscope / accelerometer Drop sensor Odometer Fan speed sensor Three independent processors SLAM Algorithm ARM Cortex™-A7 Architecture quad-core application processing TI Texas Instruments Digital signal processor Automatic chargeback |
| Product Dimensions | Charger: 230mm * 109mm * 129mm Vacuum: 345mm * 345mm * 96mm |
| Weight | 4 kg |
| Indicators | Yes |
| Wheels | Yes |
| Run Time | 2.5 Hour On Battery |
| In the box | Main Unit Charging Set User Manual Warranty Card |
| Warranty Period | 1 Year Manufacturer Warranty |
